RockJock Johnny Joint Rod End 2in Narrow Forged 2in X .500in Ball 3/4in-16 LH Thread Shank

Seen it cheaper? Send us the link. If we can beat it, we will.

CODE: ROKCE-9112N75L-12

$70.00 In Stock Sold out

Your vehicle

Select or change your vehicle here before checkout. You stay on this product while Hurrey’s keeps the fitment context.

View fitment table Call the shop Ask fitment

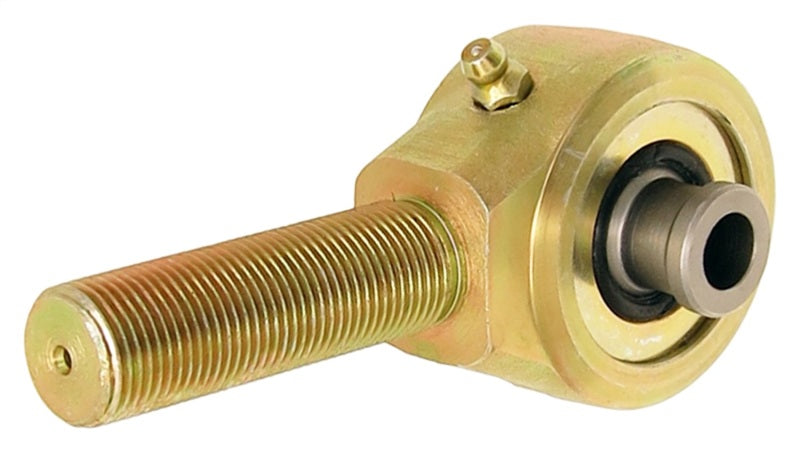

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 3/4 in.-16 left hand threads on the shank, and a 2 in. mounting width ball with a .500 in. thru bolt hole. Finished in gold zinc plating.
