RockJock Johnny Joint 2 1/2in Narrow Forged Long Shank 1 1/4in-12 RH Threads 2.365in x .562in Ball

Manufacturer part number: RJ-335402-102

Seen it cheaper? Send us the link. If we can beat it, we will.

CODE: ROKRJ-335402-102

$92.00 Backorder — not currently in stock Sold out

BACKORDER — not currently in stock

This item is on backorder. A shipping date is not confirmed. Contact us for current lead time: 609-249-4921.

I understand this item is on backorder and its shipping date is not confirmed.

View our return policy

Buy now, pay later with Shop Pay.

Choose Shop Pay at checkout to see your available payment options.

Rates from 0-36% APR. Payment options through Shop Pay Installments are subject to an eligibility check and are provided by these lending partners: affirm.com/lenders. Options depend on your purchase amount, and a down payment may be required. State notices to consumers: affirm.com/licenses.

Buy nowCheckout this item

Share your vehicle details now, or choose to provide them later. For multiple items or installation, use Add to cart.

Vehicle info status

Shipping and applicable taxes are calculated at checkout.

I agree with the terms and conditions.

Select a vehicle info status to continue.

Shipping and applicable taxes are calculated at checkout.

Need it by a certain date? Call 609-249-4921 before ordering. Online availability does not confirm stock at our Hamilton shop; please call ahead for pickup or installation.

Your vehicle

Select or change your vehicle here before checkout. You stay on this product while Hurrey’s keeps the fitment context.

View compatible vehicles Call the shop Ask fitment

View compatible vehicles

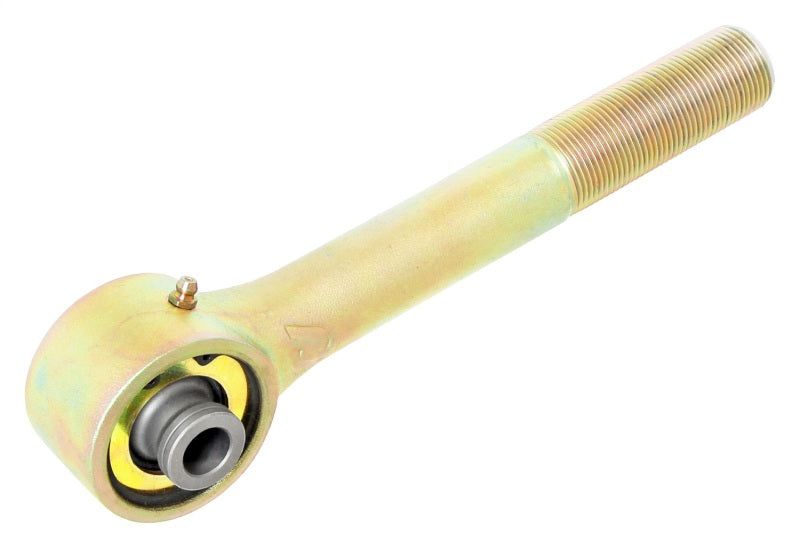

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 1/2 in. diameter, narrow body and features a 9 1/2 in. long shank, from CL of joint to end of tip of threads), 3 1/2 in. of 1 1/4 in.-12 RH threads and a 2.365 in. wide x .562 in. thru-hole center pivot ball. Additional features of the long shank design include the the jam nut being pushed outward, away from the bracket that the joint mounts in to provide more clearance and accessibility to the jam nut. Also, the smooth shank area of the joint may have a bend applied to it in a press to angle the joint for a perfect fit in your application or to gain clearance in tight spots. Joint is externally greasable via a zerk fitting. Finish is gold zinc plating.
