RockJock 2021+ Bronco Rear Frame Johnny Joint 2 1/2in Forged 1 1/4in-12 LH Threads 74mm x 16mm Ball

Seen it cheaper? Send us the link. If we can beat it, we will.

CODE: ROKRJ-330401-101

$72.00 In Stock Sold out

Your vehicle

Select or change your vehicle here before checkout. You stay on this product while Hurrey’s keeps the fitment context.

View fitment table Call the shop Ask fitment

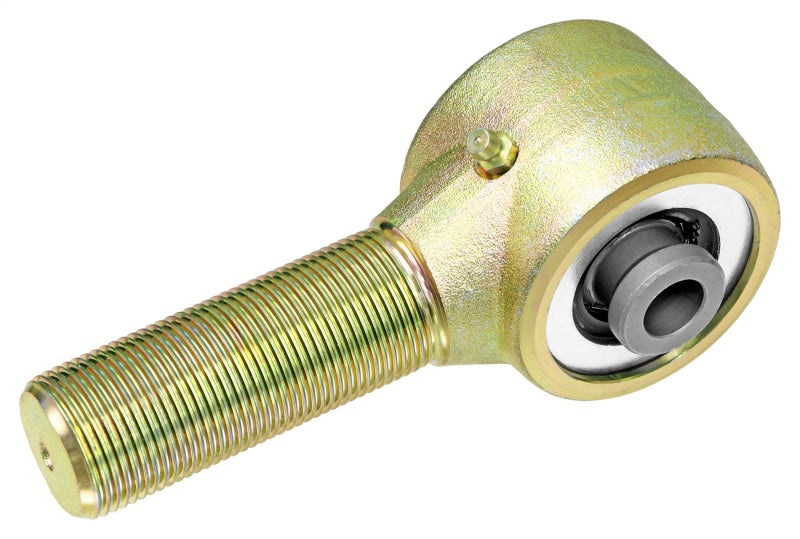

RockJocks forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is designed to fit the frame side of the 2021 and up Broncos rear control arms and feature a 2 1/2 in. diameter joint body, fitted with a zerk fitting for greasing, 2.3 in. of 1 1/4 in.-12 left hand threads on the shank, and a 74mm mounting width ball with a 16mm thru bolt hole. Finished in gold zinc plating.
