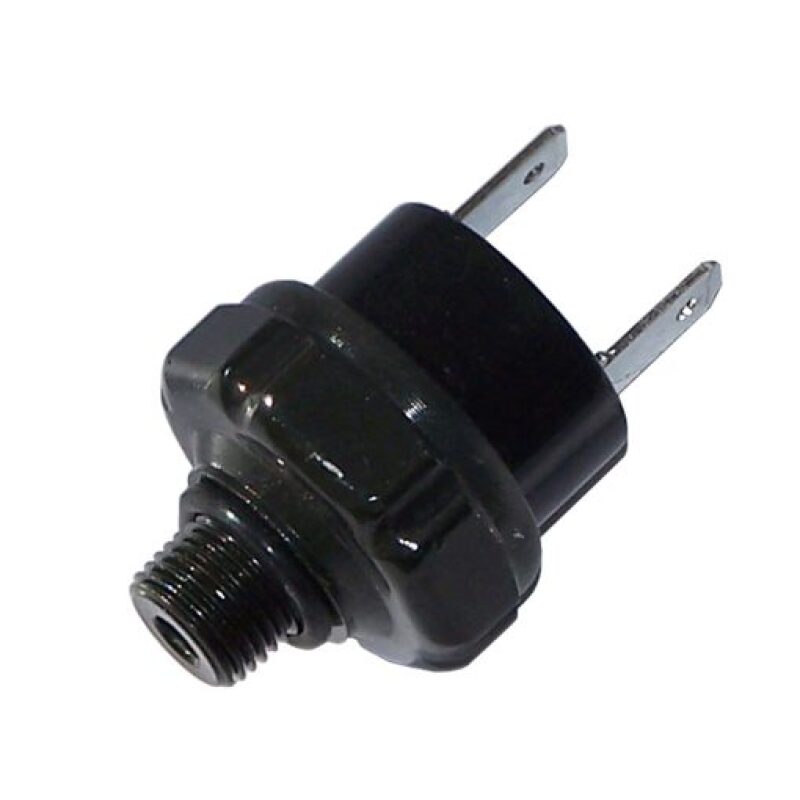

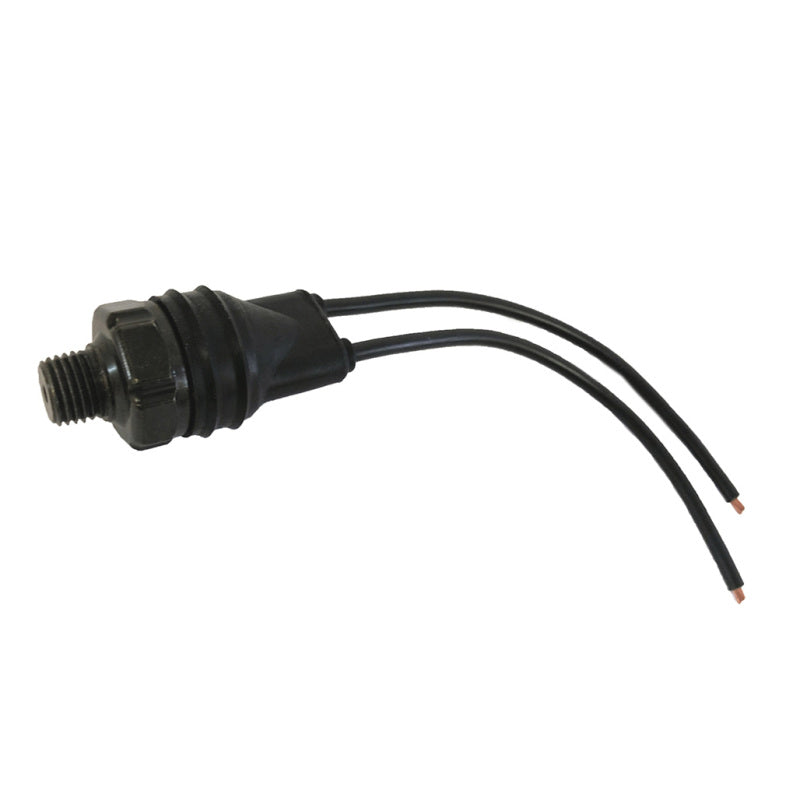

Kleinn Sealed Tank Mount Pressure Switch/ 1/4In M NPT/ 100 PSI On/ 130 PSI Off
Want the yes/no before checkout? Start with vehicle lookup, then Hurrey's can confirm clearance, trim, install path, or supporting parts.
Optimize your onboard air system with the Kleinn 2131 sealed 12-volt automatic air pressure switch, engineered to turn your air compressor on at 100 PSI and off at 130 PSI with a standard 5 percent variance tolerance. Perfectly matched for use with the Kleinn 6270RC compressor in the HK3-HK4 kits and a universal fit for various heavy-duty pneumatic applications, this switch receives 12-volt ignition power to efficiently signal a required SPDT 30-amp relay (such as Kleinn Model 340) to automate your compressor operations safely under a 20-amp maximum load. For ultimate system protection against switch failure and to prevent compressor burnout, it is highly recommended to pair this unit with a 155 PSI safety relief valve (Kleinn SKU 52155) installed directly on your air tank.
Installation Instructions- Non-polarized wires (Ignition 12v input, 12v Output to Relay)
- The use of a relay is recommended (Kleinn model 340)
- Sealed 1/4" NPT Pressure Switch
- Note: 5% tolerance standard
- 100PSI ON - 130 PSI OFF
- Wires are non polarized
- 20 amp max load
