Diode Dynamics

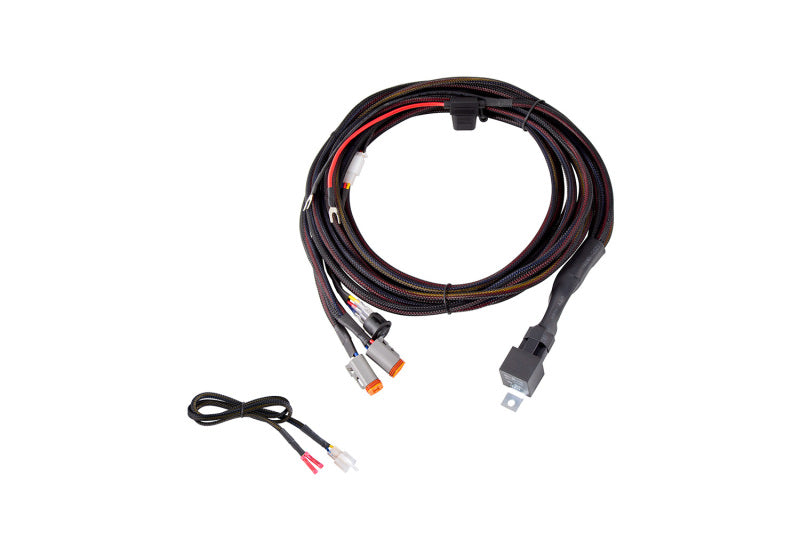

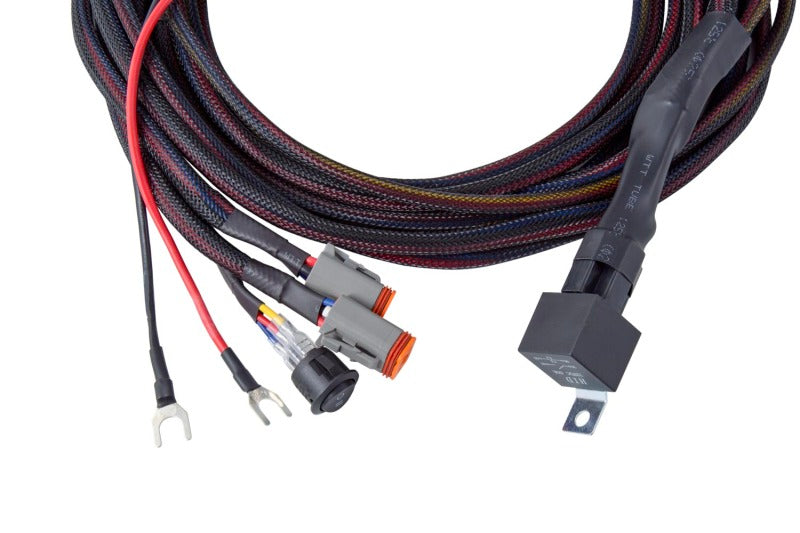

Diode Dynamics Heavy Duty Dual Output 3-way 4-pin Wiring Harness

Manufacturer part number: DD4093

Seen it cheaper? Send us the link. If we can beat it, we will.
CODE: DIODD4093
$59.95 Available to order Sold out
Buy now, pay later with Shop Pay.

Choose Shop Pay at checkout to see your available payment options.

Rates from 0-36% APR. Payment options through Shop Pay Installments are subject to an eligibility check and are provided by these lending partners: affirm.com/lenders. Options depend on your purchase amount, and a down payment may be required. State notices to consumers: affirm.com/licenses.

Buy nowCheckout this item

Share your vehicle details now, or choose to provide them later. For multiple items or installation, use Add to cart.

Shipping and applicable taxes are calculated at checkout.

Select a vehicle info status to continue.

Shipping and applicable taxes are calculated at checkout.

Need it by a certain date? Call 609-249-4921 before ordering. Online availability does not confirm stock at our Hamilton shop; please call ahead for pickup or installation.

Your vehicle

Select or change your vehicle here before checkout. You stay on this product while Hurrey’s keeps the fitment context.

View compatible vehicles Call the shop Ask fitment
View compatible vehicles

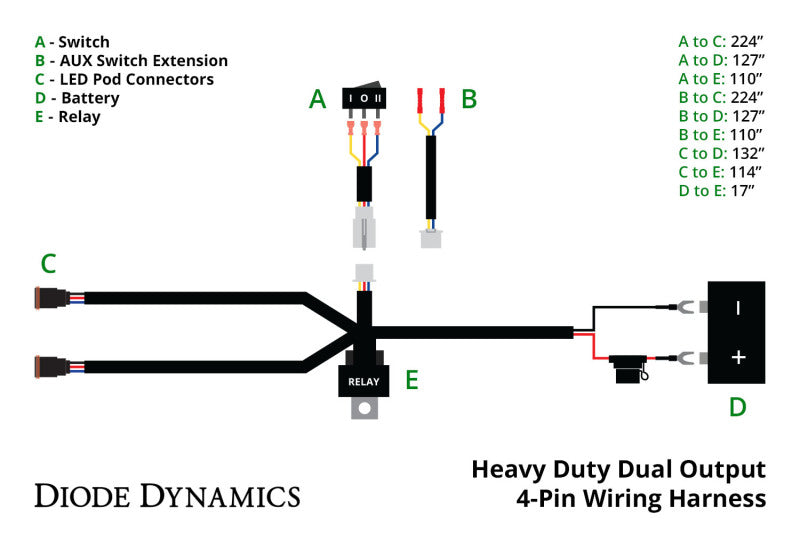

Features Powers Diode Dynamics LED pods with backlight functionality. Connects directly to the battery to power your LED pods. High capacity 14AWG wiring. Dual Deutsch DT output connectors. 30A waterproof fuse, and 60A 12V relay to safeguard the electrical systems in your pods. Overview Stage Series. This harness is intended to be used with our Stage Series pods with backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a three-way switch to toggle between the backlight, off, and the main beam. This harness uses high capacity 14AWG wiring and Deutsch DT connectors for simple plug-and-play installation. This harness safely powers up to 25A of auxiliary lamps. Please refer to the current draw data below. C1 Sport: 1.2A C1 Pro: 1.7A SSC2 Sport: 0.6A SSC2 Pro: 1.75A SS3 Non-Backlit Sport: 2.9A SS3 Non-Backlit Pro: 1.2A SS3 Non-Backlit Max: 3.3A SS3 Backlit Sport: 1.06A SS3 Backlit Pro: 2.87A SS5 Sport: 2.8A SS5 Pro: 6.7A Control through OEM Aux Switches. This harness includes an OEM aux switch adapter wire that allows you to control your lights using a factory-installed aux switch bank. Two switches will be used - one for the main beam, and one for the backlight. For those who don't have the aux switch bank, you will use the included toggle switch adapter wire to mount a switch.

Installation Instructions
  • 25A waterproof fuse and 60 amp 12V relay to safeguard the electrical systems in your offroad lighting
  • Connects directly to the battery to power your offroad lighting
  • battery to power your offroad lighting
  • Black wire sheathing to protect cables

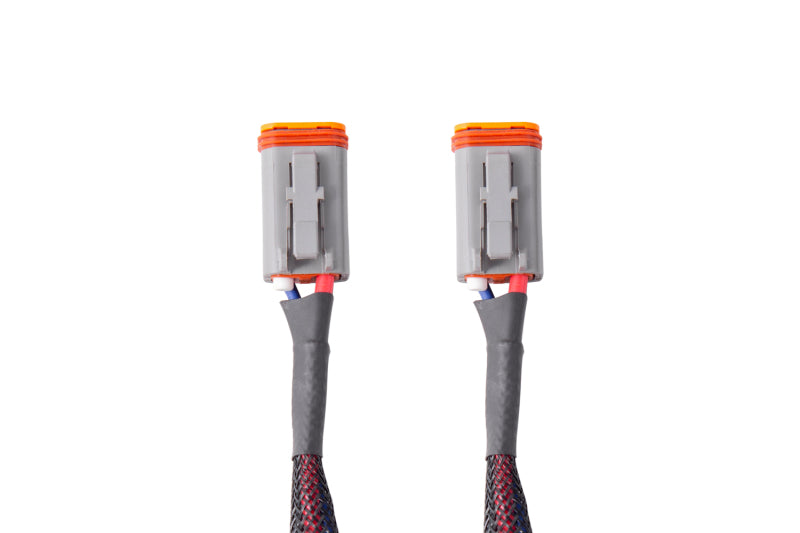

  • Dual Deutsch DT output connectors
  • Connects directly to the&nbsp
  • High capacity 14AWG wiring
