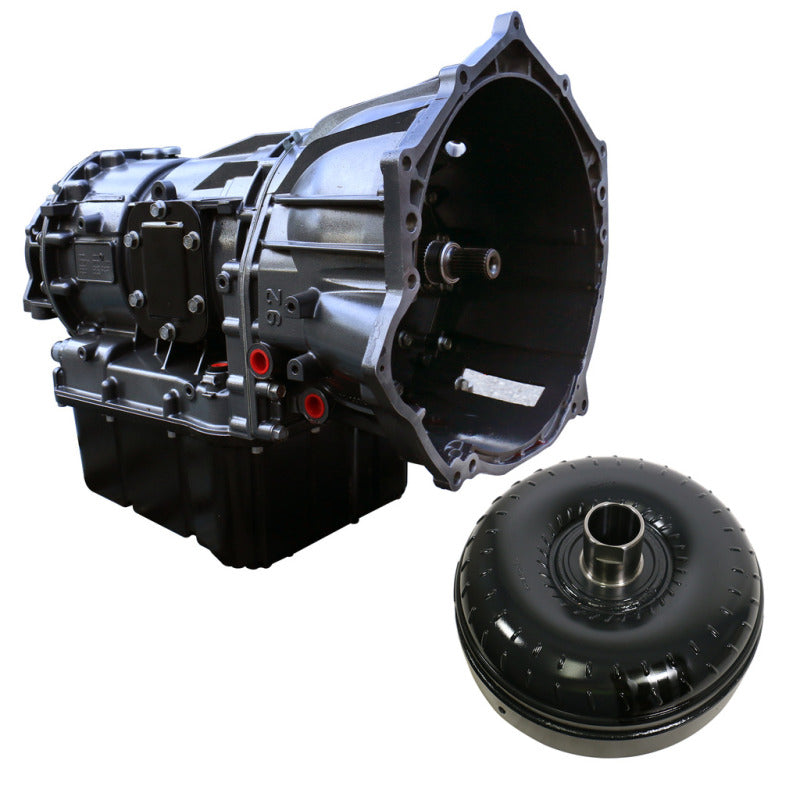

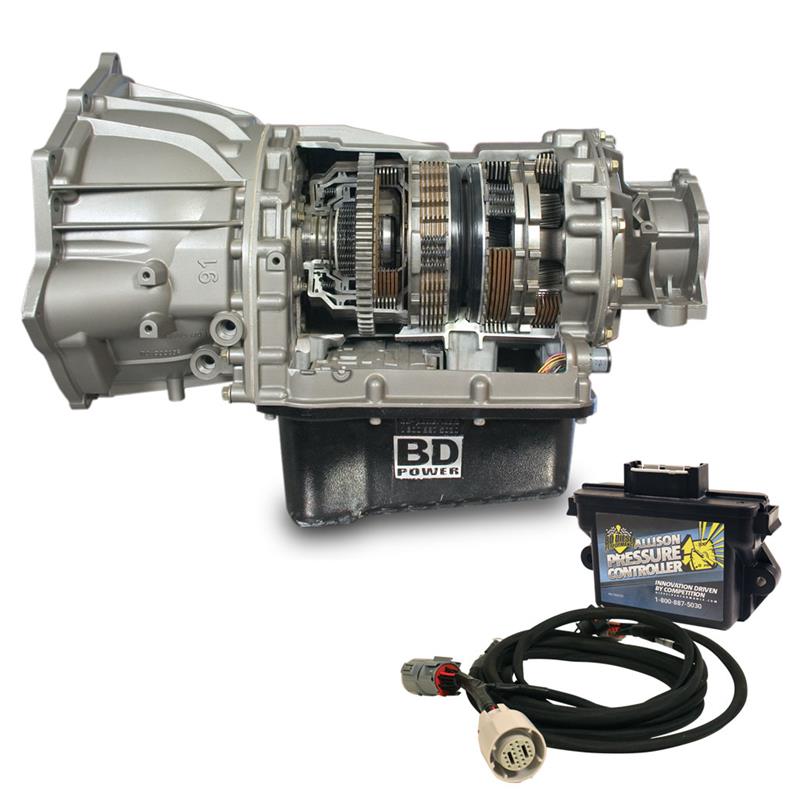

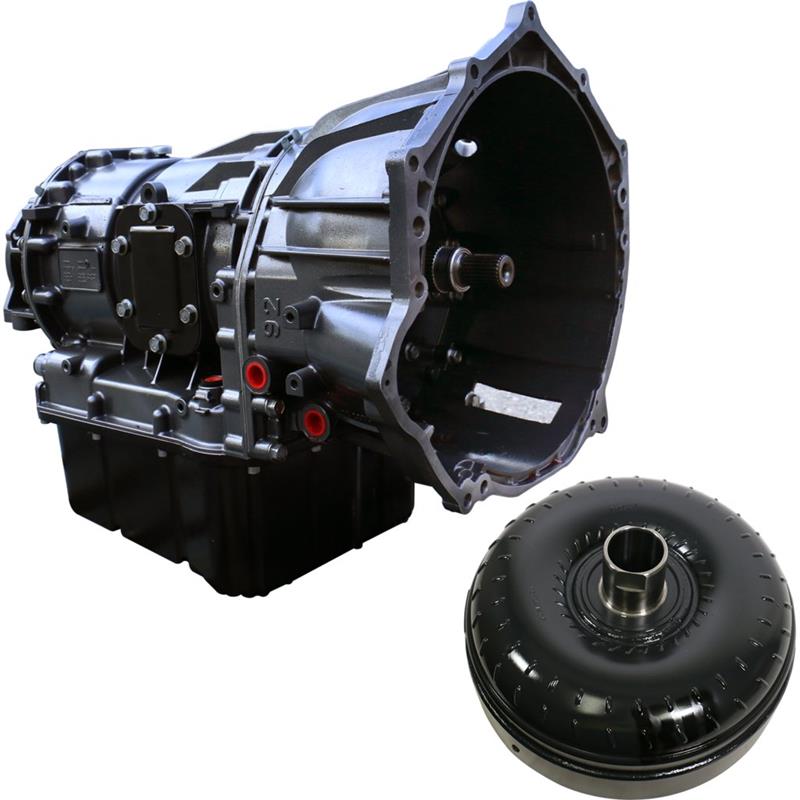

When you purchase a BD Transmission and Torque Converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity and case strength. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.
Installation InstructionsInstallation Instructions
- Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
- Self-centering trapezoid teeth design increases contact decreases wear and chatter
- Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
- BD Aluminum HD deep transmission pan, increases oil capacity by 3.5qt
- Furnaced brazed turbine fins for improved fluid coupling efficiency
- New A & B trim valves deliver full line pressure to the clutches
- Reduced overall weight by 12lbs compared to competitors
- New convertor lock up valve to boost lock-up pressures
- Clutch Count: C2 7 clutches (17% increase over stock)
- Clutch Count: C3 7 clutches (75% increase over stock)
- Clutch Count: C1 8 clutches (14% increase over stock)
- Clutch Count: C4 7 clutches (17% increase over stock)
- Clutch Count: C5 7 clutches (17% increase over stock)
- New sprag components ensure long term durability
- Thrust bearings - not plastic thrust washers
- Enhanced Stall - Street/Towing applications
- Increase The Durability Of Your Drivetrain
- Taller cover can be rebuilt more often
- HD springs absorb shock of engagement
- Cast stator designs maximizes torque
- Eliminates warpage from clutch heat
- Aluminum HD Deep Transmission Pan
- Each transmission is dyno tested
- Torque Convertor Enhanced Stall
- Engineered tighter tolerances
- High energy GPZ(TM) frictions
- Stamped Forged 1 Piece Cover
- High Energy Clutch Material
- Stamp forged 1-piece cover
- More Efficient Operation
- Increased Clutch Count
- Trapezoid teeth design
- No Race Abuse Covered
- Revised oil circuits
- Furnace Brazed Fins
- TORQUE CONVERTOR:
- TRANSMISSION:
- Triple Disc
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004-2005 | Chevrolet | Silverado 2500 HD | Base |
| 2004-2006 | Chevrolet | Silverado 2500 HD | LS |
| 2004-2006 | Chevrolet | Silverado 2500 HD | LT |
| 2004-2006 | Chevrolet | Silverado 2500 HD | WT |
| 2004-2005 | Chevrolet | Silverado 3500 | Base |
| 2004-2006 | Chevrolet | Silverado 3500 | LS |
| 2004-2006 | Chevrolet | Silverado 3500 | LT |
| 2004,2006 | Chevrolet | Silverado 3500 | WT |
| 2004-2005 | GMC | Sierra 2500 HD | Base |
| 2004-2005 | GMC | Sierra 2500 HD | SLE |
| 2004-2005 | GMC | Sierra 2500 HD | SLT |
| 2004-2005 | GMC | Sierra 2500 HD | WT |
| 2004-2005 | GMC | Sierra 3500 | Base |
| 2004-2005 | GMC | Sierra 3500 | SLE |
| 2004-2005 | GMC | Sierra 3500 | SLT |
| 2004-2005 | GMC | Sierra 3500 | WT |
