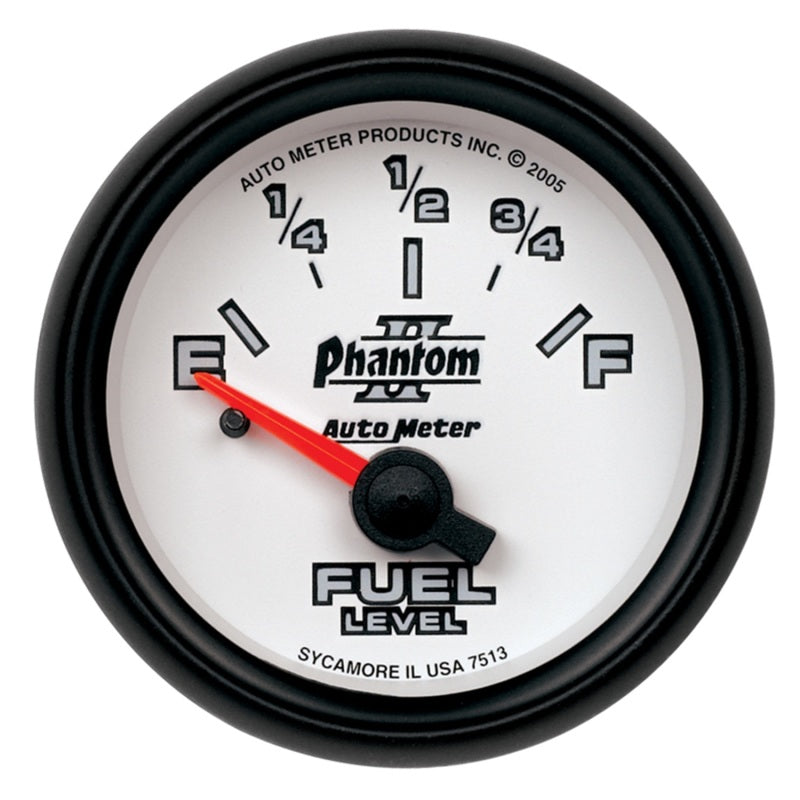

Autometer Phantom 2-1/16in 0-90 OHM Fuel Level Gauge

Seen it cheaper? Send us the link. If we can beat it, we will.

CODE: ATM7513

$109.91 In Stock Sold out

Fitment check

Want the yes/no before checkout? Start with vehicle lookup, then Hurrey's can confirm clearance, trim, install path, or supporting parts.

Check vehicle Call the shop Ask fitment

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

Installation Instructions

AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
Adjustable Scale w/ 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
Gauge kit includes 20 ft. wiring harness, mounting hardware, and detailed instructions for installation
12 and 16 volt compatible, compatible with nearly every street car or race car electrical system

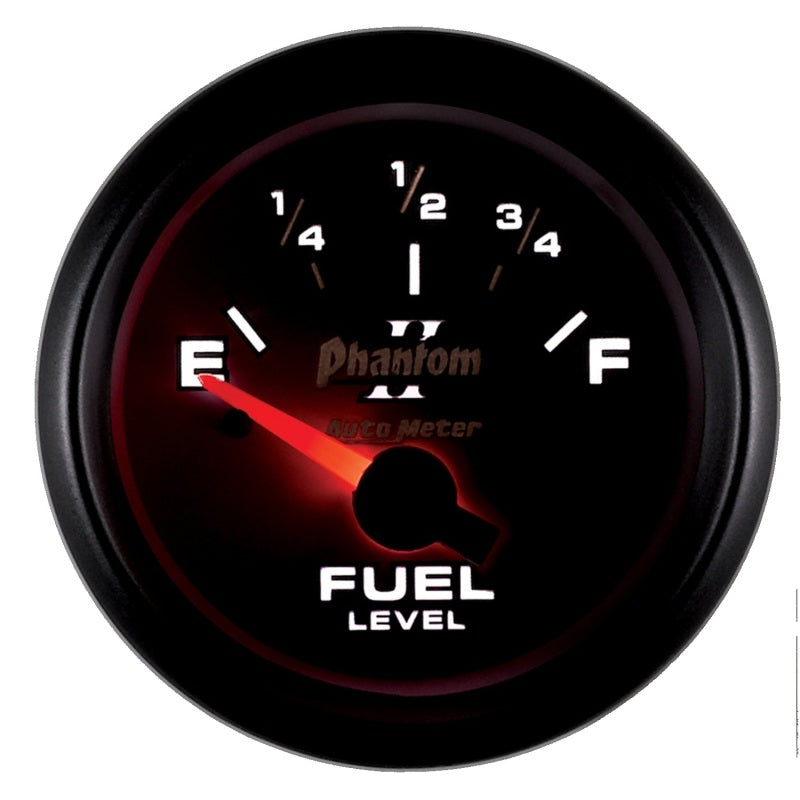

Modern white LED through-the-dial lighting provides clear visibility during nighttime use
User definable resistance setting programmable anywhere between 0-280 ohms
