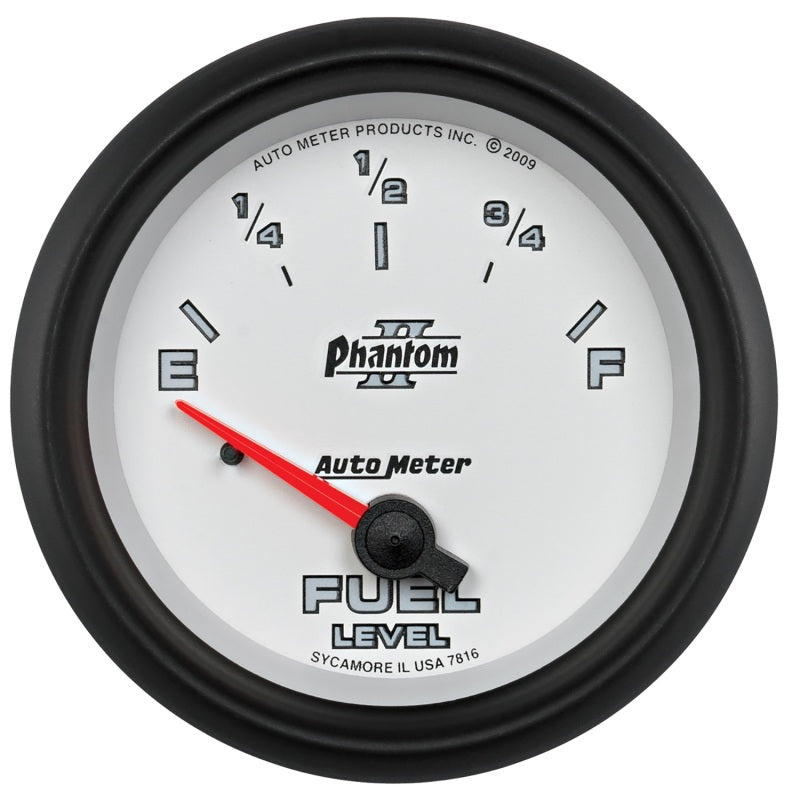

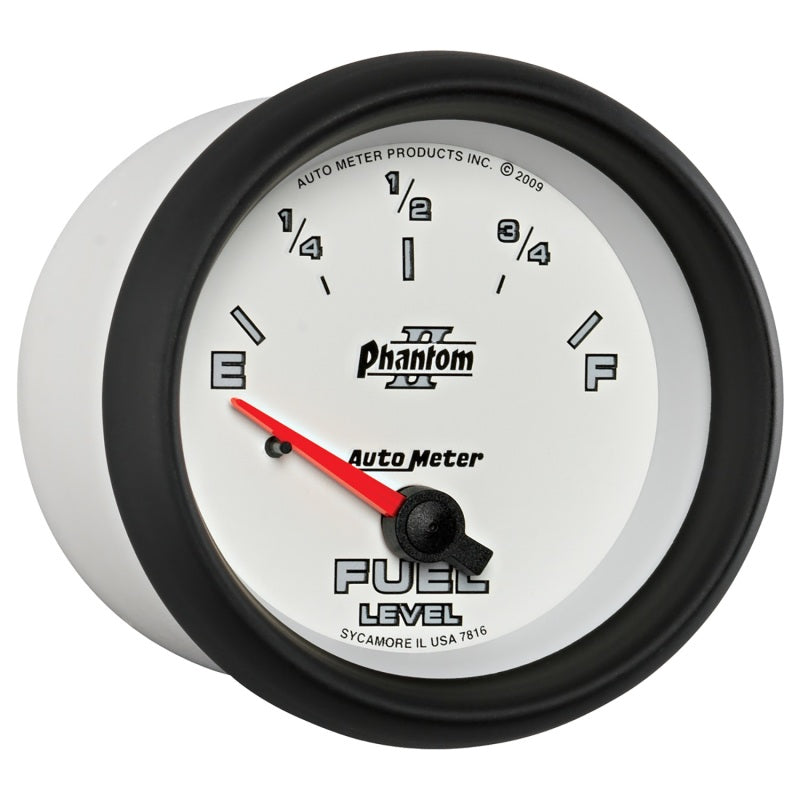

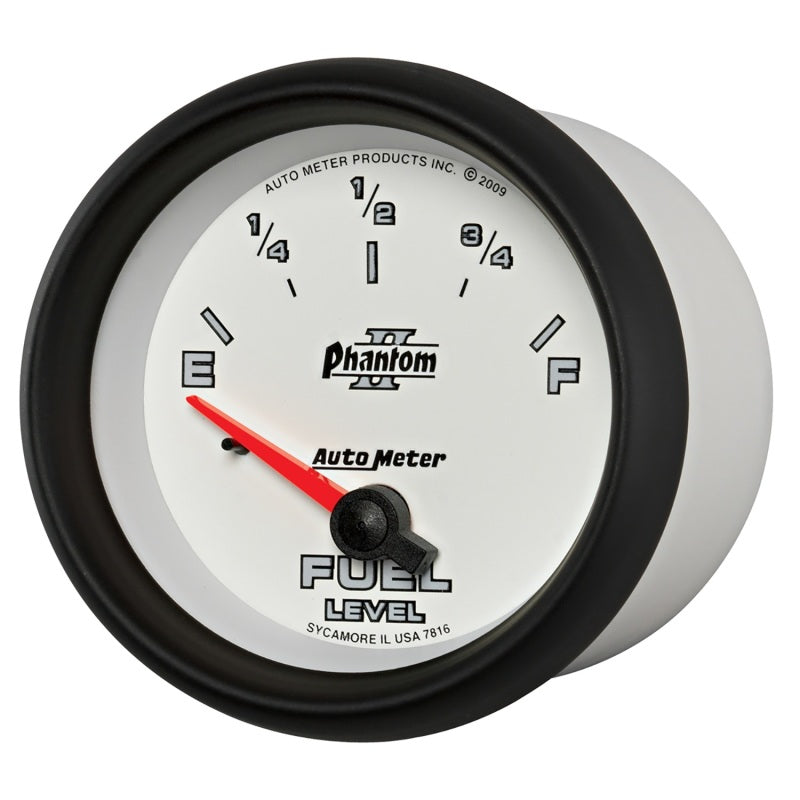

AutoMeter Gauge Fuel Level 2-5/8in. 240 Ohm(e) to 33 Ohm(f) Elec Phantom II

Seen it cheaper? Send us the link. If we can beat it, we will.
CODE: ATM7816
$123.53 In Stock Sold out
Fitment check

Want the yes/no before checkout? Start with vehicle lookup, then Hurrey's can confirm clearance, trim, install path, or supporting parts.

Check vehicle Call the shop Ask fitment

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

Installation Instructions
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings

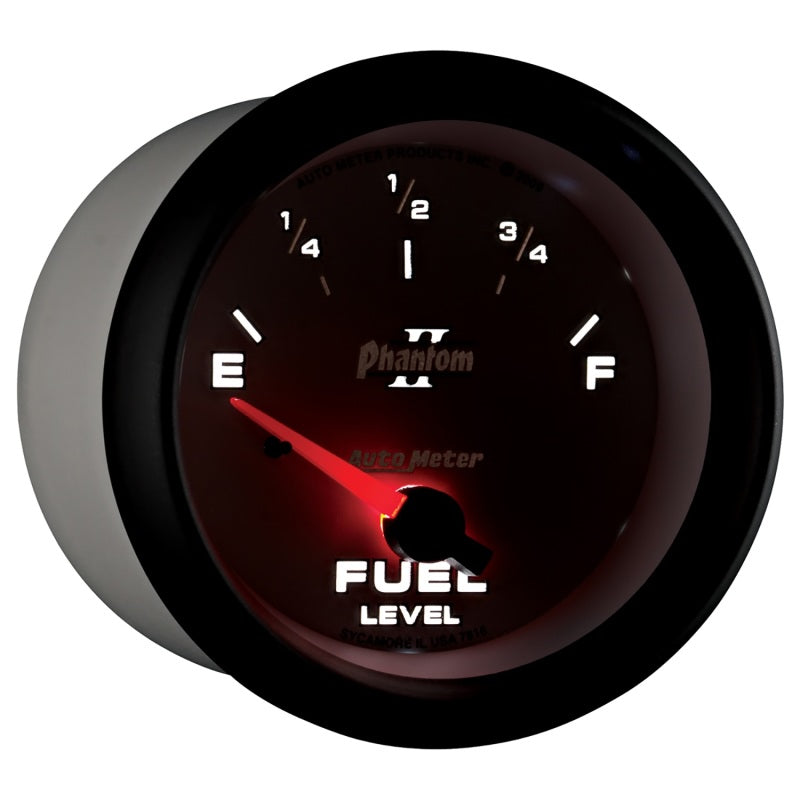

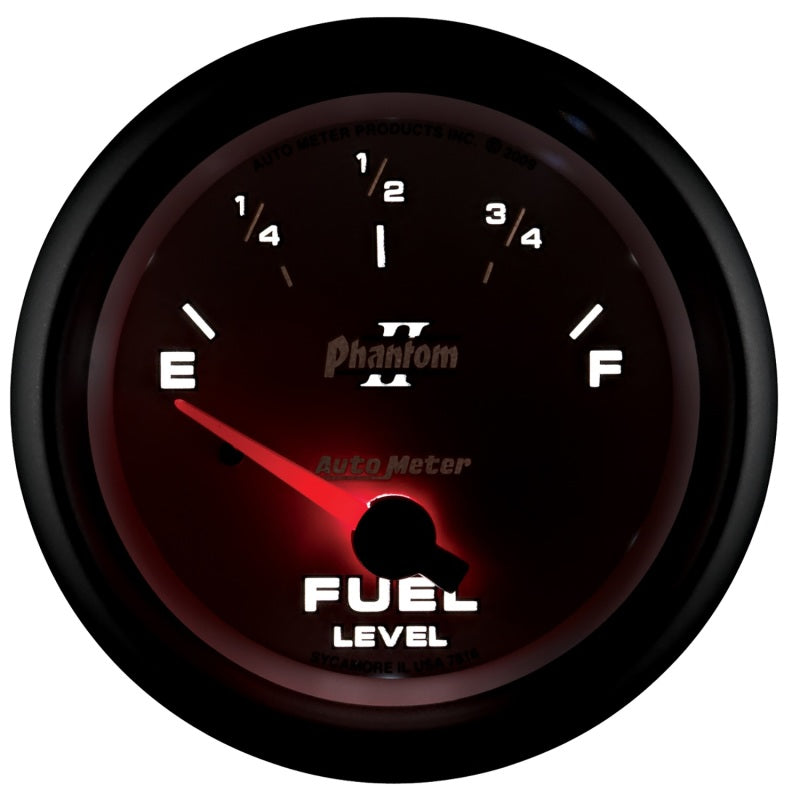

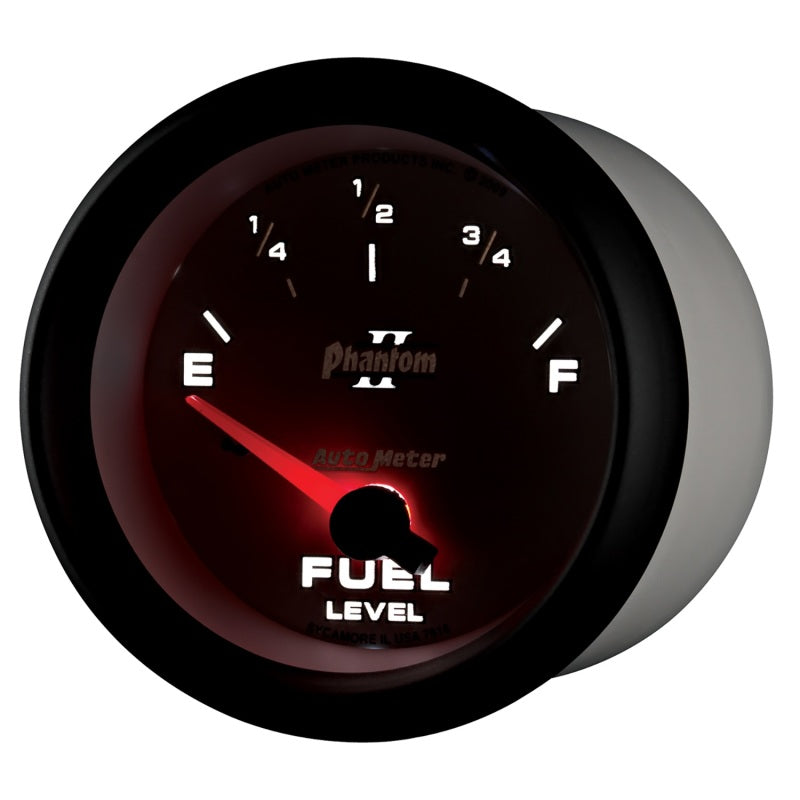

  • Modern white LED through-the-dial lighting provides clear visibility during nighttime use
  • Gauge kit includes mounting hardware and detailed instructions for installation
  • Works with 240E/33F ohm senders, including AutoMeter 3262
