Autometer #4 Braided SS Line (-4AN) 3ft 1/8in NPT Fittings

Seen it cheaper? Send us the link. If we can beat it, we will.

CODE: ATM3227

$74.16 In Stock Sold out

Fitment check

Want the yes/no before checkout? Start with vehicle lookup, then Hurrey's can confirm clearance, trim, install path, or supporting parts.

Check vehicle Call the shop Ask fitment

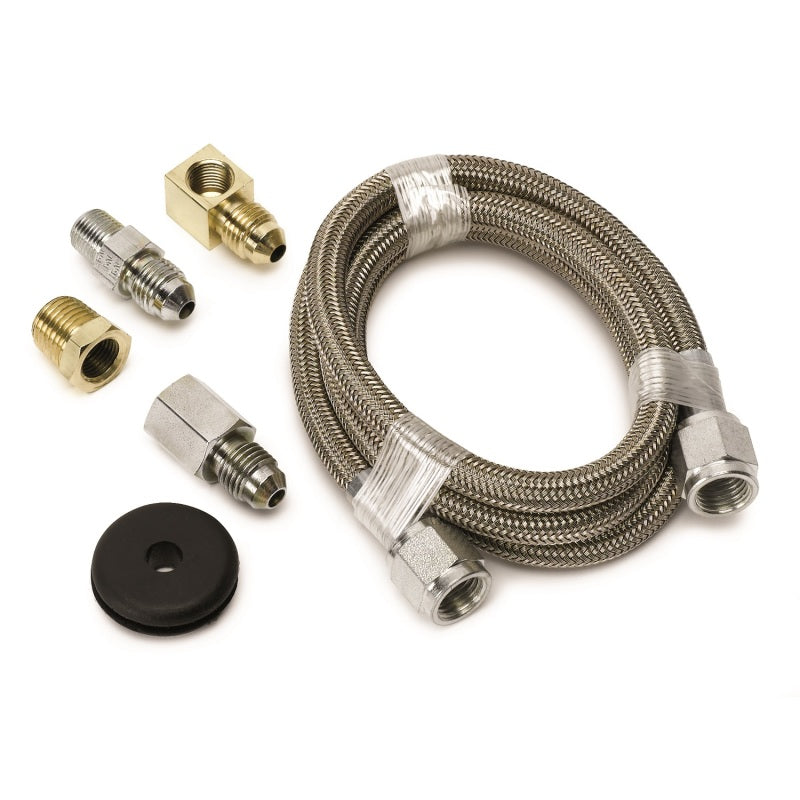

Includes 3ft. of #4 braided stainless steel line, firewall pass through grommet, 1/8" NPT female right angle to -4AN male fitting, -4AN male to 1/8" NPT male fitting, -4AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.

Includes 1/8"NPT male to -4AN female straight, 1/8" FPT Female to -4AN Male straight, 1/8" NPT Female to 1/4" NPT male straight, and -4AN to 1/8" NPT female 90 degree fittings
`-65 F to 450 F Operating Temperature Range
PTFE lined hose, resistant to most fluids
Maximum Operating Pressure - 3000 PSI
Burst Pressure - 12,000 PSI
Type 304 Stainless braid
3ft hose length
