AEM X-Series Wideband UEGO AFR Sensor Controller Gauge Accessory Kit
Select or change your vehicle here before checkout. You stay on this product while Hurrey’s keeps the fitment context.

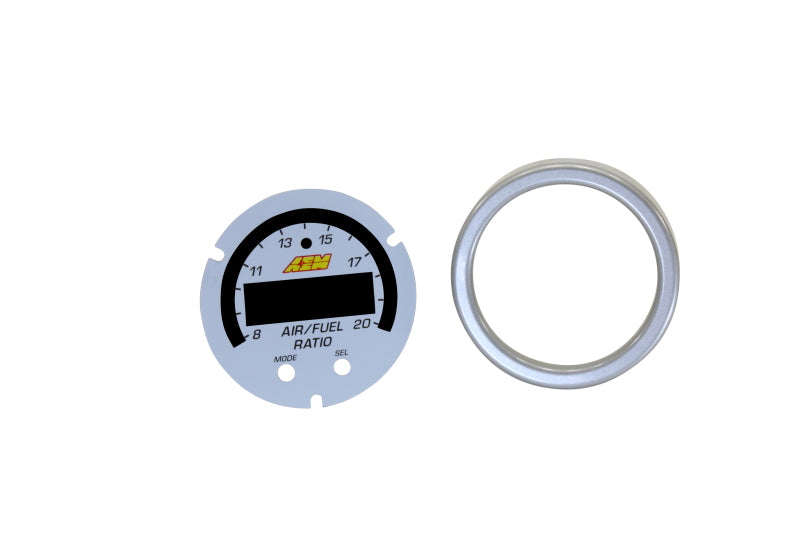

The AEM Wideband X-Series UEGO AFR Gauge has a user configurable display via buttons on the gauge face that allows you to change AFR values for different fuels, Lambda or O2%, change the center display to three or four digits, perform a free-air calibration if desired as the sensor ages, and change the CAN message ID when linking multiple X-Series Inline Controllers or X-Series Controller Gauges. A black bezel and black dual-faced faceplate for air/fuel and Lambda are included, and an optional silver bezel with white dual-faced air/fuel and Lambda faceplate is available (PN 30-0300-ACC, sold separately). An Auto Dimming feature is included. Locking connectors ensure a positive connection between the harnesses and gauge and a new single board design adds to the new gauge's durability.
Warranty- X-Series Wideband UEGO AFR Controller Gauge were fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitors wideband AFR controllers
- 0-5V & RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders
- Factory calibrated resistor does not require free-air calibration, but technology allows for free-air calibration as sensor ages if user desires
- User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, and 3- or 4-digit display
- Compatible with vehicle/system voltages up to 16V
- 52mm gauge diameter and slim 0.825" gauge depth
- Includes Bosch 4.9LSU wideband UEGO sensor
- Can display AFR values in hundredths of %
- Patented X-Digital wideband technology
- Silver bezel/white gauge option
- Gauge cup depth only .200" deep
- Auto dimming feature
