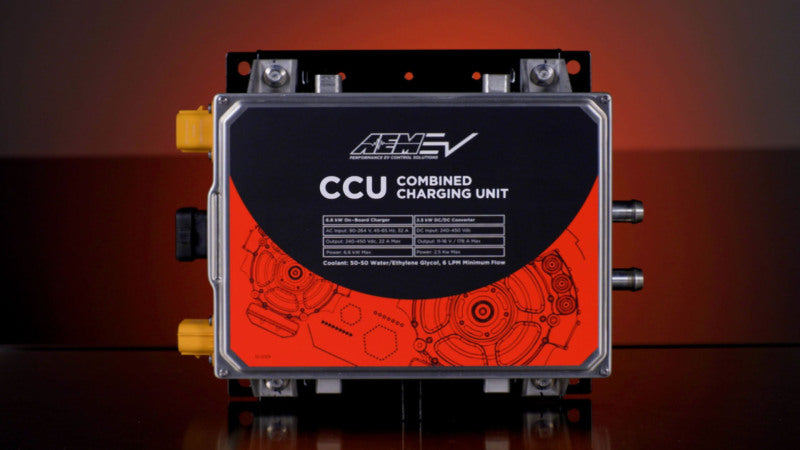

Photo - out of package

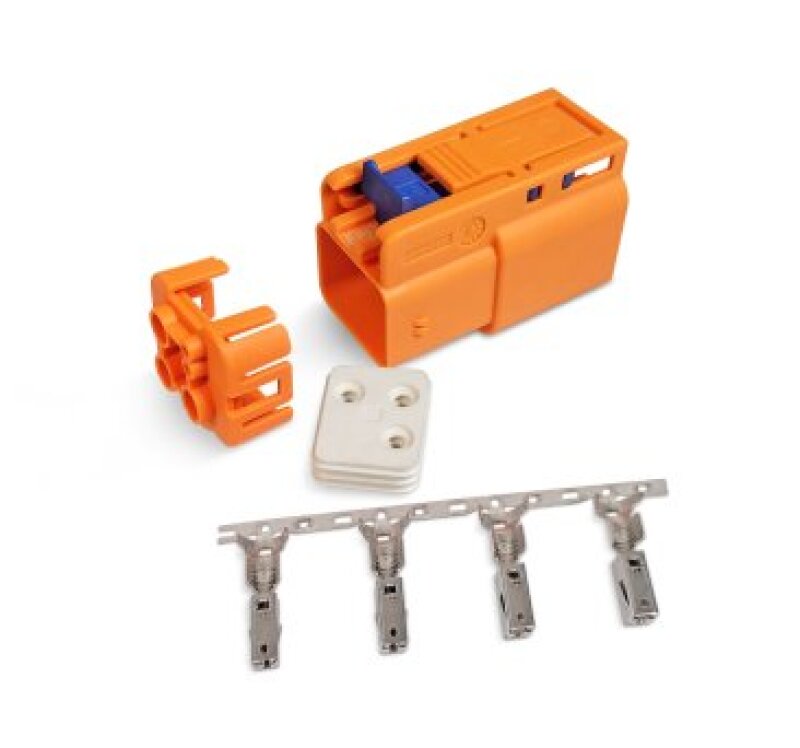

Photo - out of package

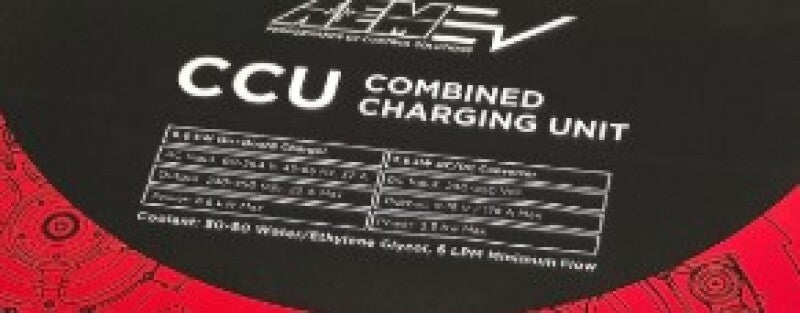

Photo - out of package
AEM

AEM EV CCU Kit

Manufacturer part number: 30-8405

Sale
Seen it cheaper? Send us the link. If we can beat it, we will.
CODE: AEM30-8405
$3,318.95
$2,654.96 Backorder — not currently in stock Sold out
BACKORDER — not currently in stock

This item is on backorder. A shipping date is not confirmed. Contact us for current lead time: 609-249-4921.

View our return policy

Buy now, pay later with Shop Pay.

Choose Shop Pay at checkout to see your available payment options.

Rates from 0-36% APR. Payment options through Shop Pay Installments are subject to an eligibility check and are provided by these lending partners: affirm.com/lenders. Options depend on your purchase amount, and a down payment may be required. State notices to consumers: affirm.com/licenses.

Buy nowCheckout this item

Share your vehicle details now, or choose to provide them later. For multiple items or installation, use Add to cart.

Shipping and applicable taxes are calculated at checkout.

Select a vehicle info status to continue.

Shipping and applicable taxes are calculated at checkout.

Need it by a certain date? Call 609-249-4921 before ordering. Online availability does not confirm stock at our Hamilton shop; please call ahead for pickup or installation.

Your vehicle

Select or change your vehicle here before checkout. You stay on this product while Hurrey’s keeps the fitment context.

View compatible vehicles Call the shop Ask fitment
View compatible vehicles

The AEM EV Combined Charging Unit (CCU) combines both an On-Board Charger (OBC) and a DC-DC Converter (DCDC). The OBC charges the HV Battery Pack by taking 120v or 240v AC energy from the grid, converting it to high voltage DC and charging the high voltage battery in the vehicle. The DC-DC converter takes the high voltage from the battery pack and converts it to low voltage to maintain the charge in the vehicles 12V battery. The DC-DC converter performs the duties that the alternator does in an ICE vehicle. The CCU is fully controlled by the VCU via the CAN bus and the OBC and DC-DC report voltage, current and status information back to the VCU.

Installation Instructions
  • The DCDC LV output is rated at 91.5% efficiency at full load with a max continuous DCDC output of 178A @ 14V
  • Compact design (275mm x 202mm x 68mm =3.8L volume) - 2.5x to 3x smaller than comparable units
  • Lightweight (5.5kg, ~12 pounds) comparable units are typically 18-24 pounds
  • Liquid cooled and temperature controlled for efficient thermal management
  • The HV battery charger is rated at 93.5% efficiency at full load
  • 6.6kw (32 amps) on board charger + 2.5kw DC-DC converter
  • High voltage output over and under voltage protection
  • High and low voltage output short circuit protection
  • The CCU has the following protection functions:
  • 350Vdc nominal output and up to 450Vdc max
  • Input over and under voltage protection
  • Plug-and-play with AEM's EV controls
  • Over temperature protection
