AEM

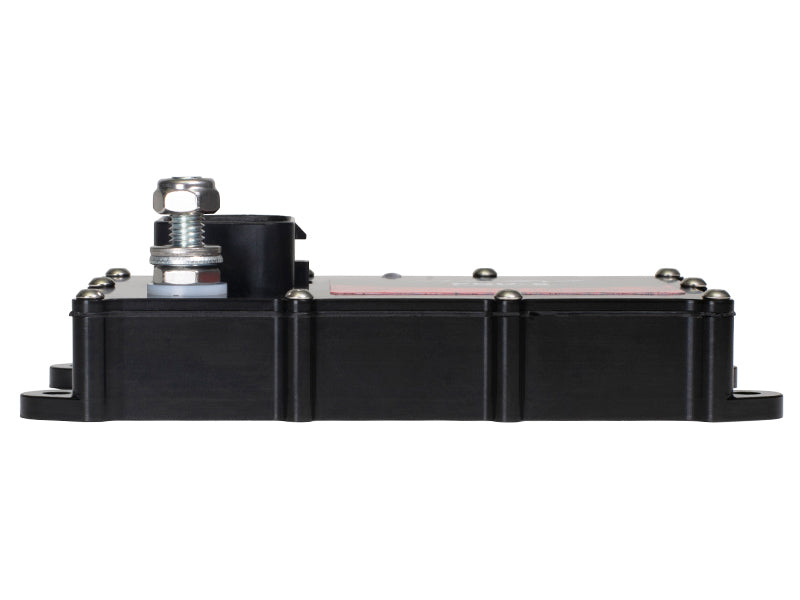

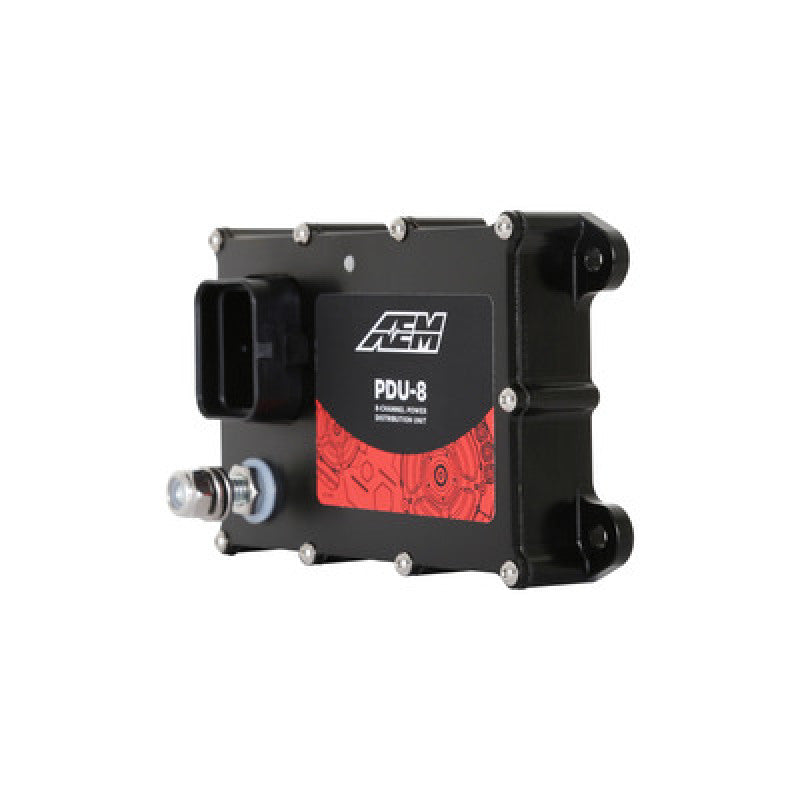

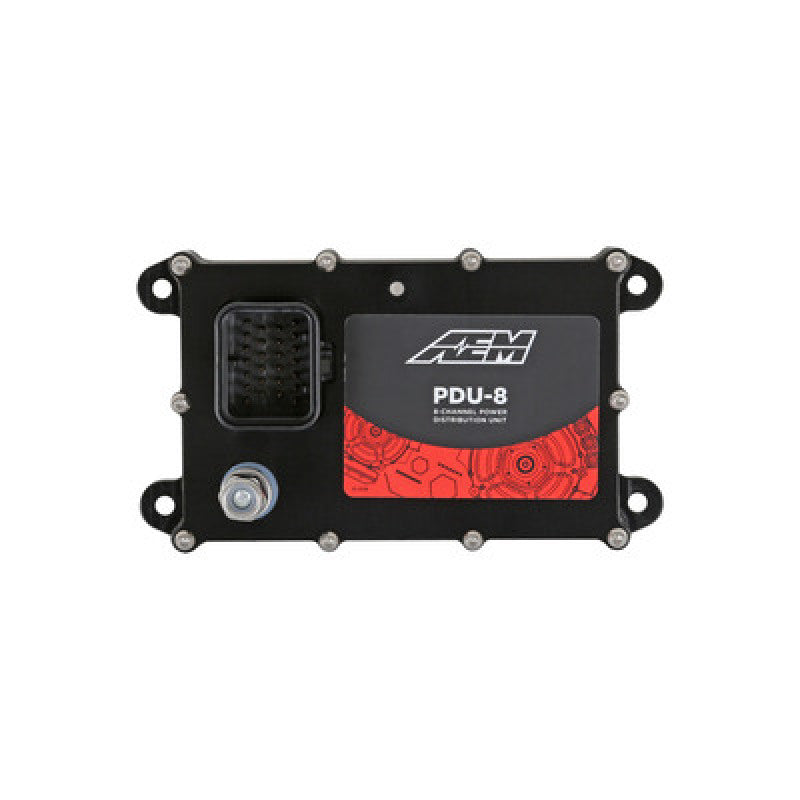

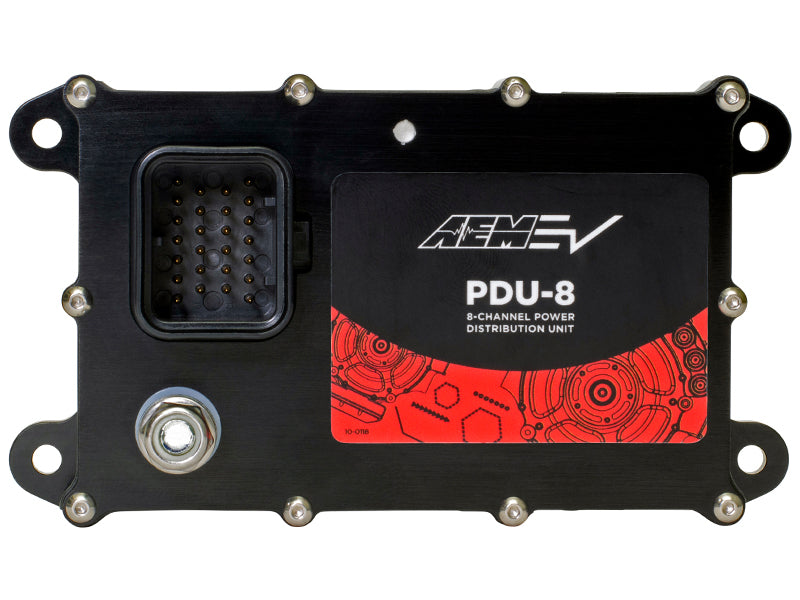

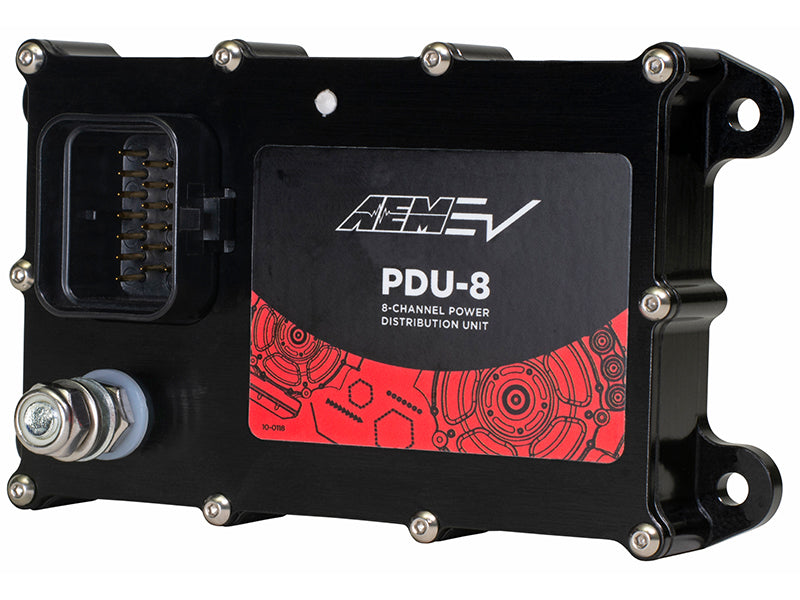

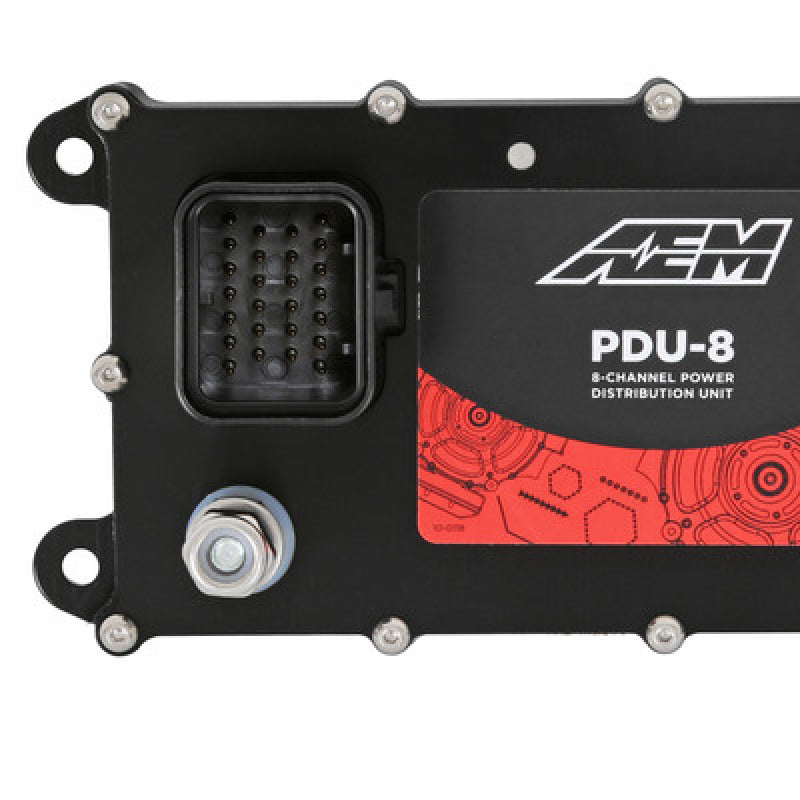

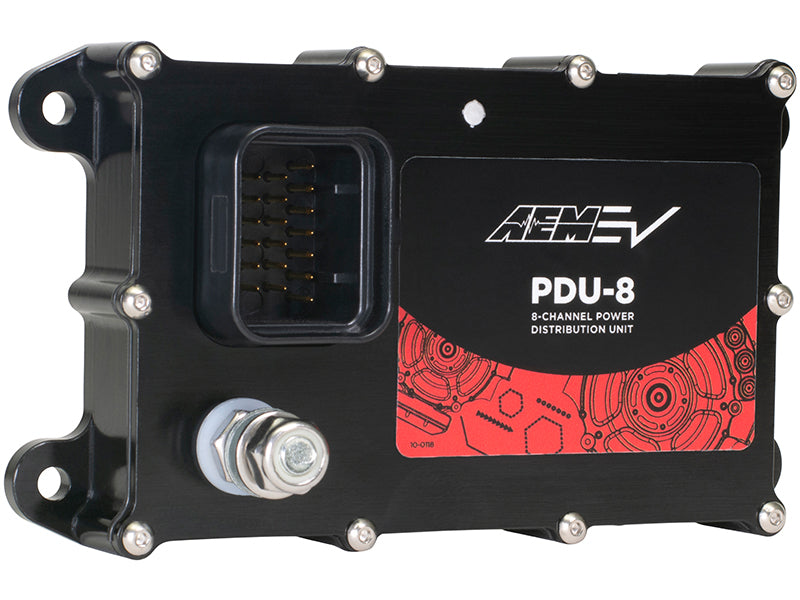

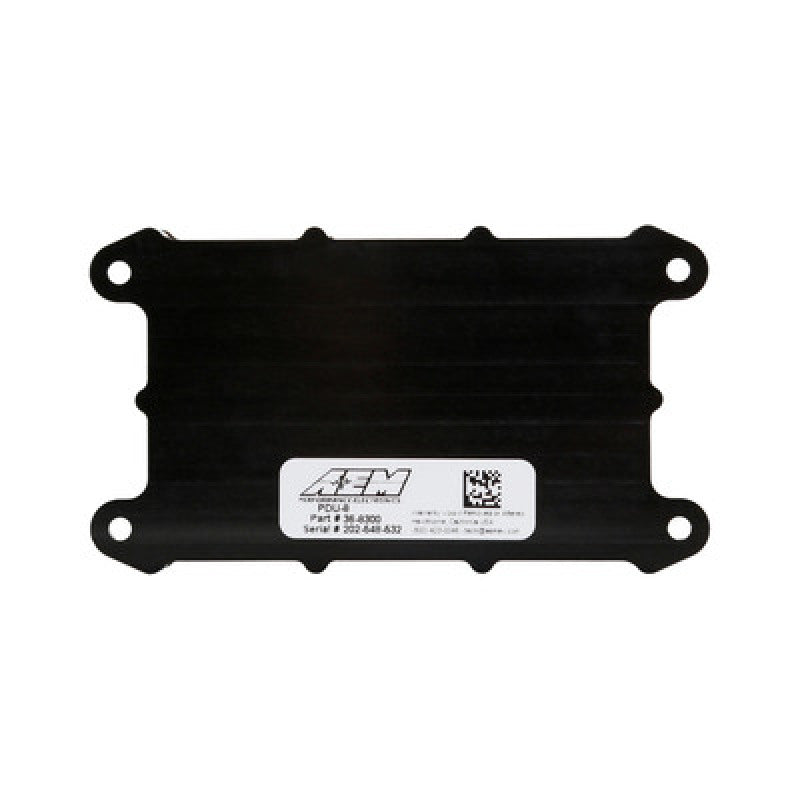

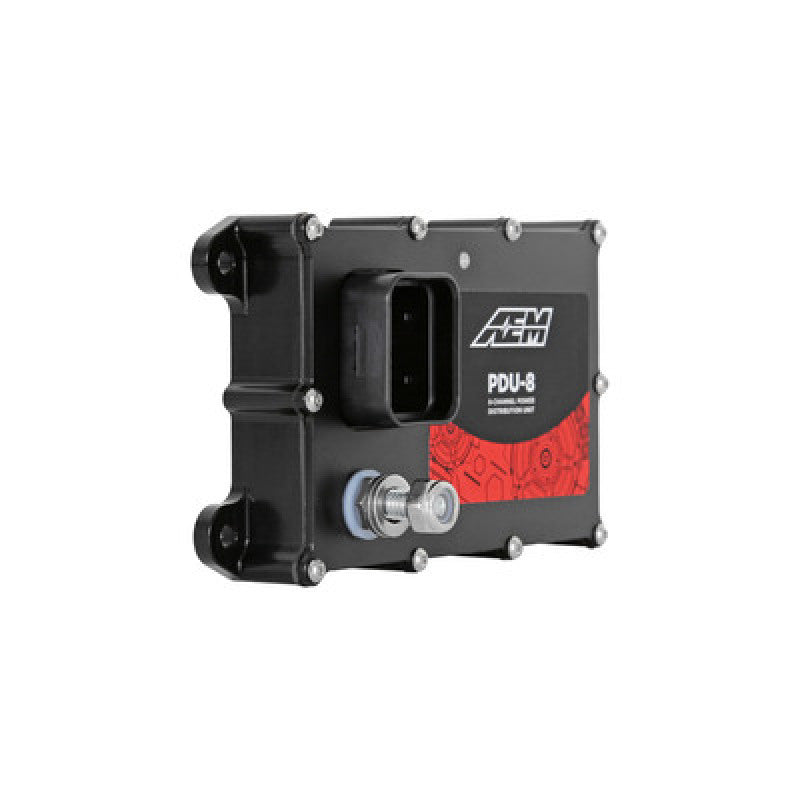

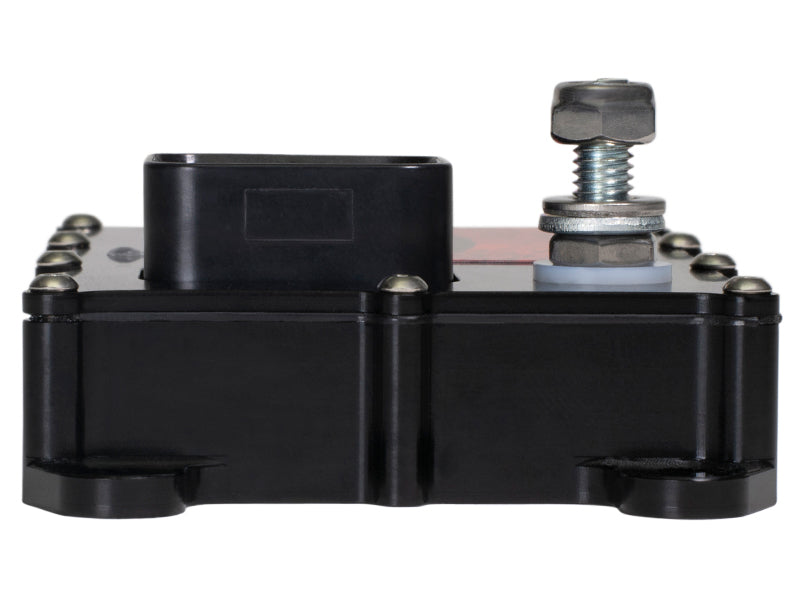

AEM EV 8 Channel CAN Driven Slave Type Power Distribution Unit (PDU)

Manufacturer part number: 30-8300

Sale
Seen it cheaper? Send us the link. If we can beat it, we will.
CODE: AEM30-8300
$877.95
$701.96 Available to order Sold out
Buy now, pay later with Shop Pay.

Choose Shop Pay at checkout to see your available payment options.

Rates from 0-36% APR. Payment options through Shop Pay Installments are subject to an eligibility check and are provided by these lending partners: affirm.com/lenders. Options depend on your purchase amount, and a down payment may be required. State notices to consumers: affirm.com/licenses.

Buy nowCheckout this item

Share your vehicle details now, or choose to provide them later. For multiple items or installation, use Add to cart.

Shipping and applicable taxes are calculated at checkout.

Select a vehicle info status to continue.

Shipping and applicable taxes are calculated at checkout.

Need it by a certain date? Call 609-249-4921 before ordering. Online availability does not confirm stock at our Hamilton shop; please call ahead for pickup or installation.

Your vehicle

Select or change your vehicle here before checkout. You stay on this product while Hurrey’s keeps the fitment context.

View compatible vehicles Call the shop Ask fitment
View compatible vehicles

Now available for internal combustion engines! The AEM EV PDU-8 is an eight channel Power Distribution Unit expansion device that gives you the power to program and control various switched devices using our ECU/VCUs, like high-voltage contactors, cooling fans, headlights, brake lights, turn signals, windshield wipers, fuel pumps, and more. The ability to connect up to eight PDU-8s (four on AEM Dashes, and one on Infinity ECU's) on the same CAN bus network lets installers mount the individual PDUs closer to the subsystems they are controlling, which simplifies wiring, reduces weight, and increases reliability. This CAN-based solid-state control module eliminates the need to install fuses and relays for the switched functions that it operates. The PDU-8 can easily be controlled by other CAN based controllers that support custom CAN settings, such as Motec, Link, FuelTech, Haltech, etc. Does work with Holley EFI if using the AEM dash display for logic based control.

Installation Instructions
  • Module is fully sealed for installation close to switched controls, simplifying wiring and reducing weight
  • Four 20A and four 10A high-side 12V outputs for activating/deactivating various switched devices
  • Small size and lightweight (103x67x33mm/4.05x2.70x1.5", 190g/6.7oz/0.42lbs.)
  • CAN-commanded PDU, no logic programming required for PDU operation
  • Fully-sealed, waterproof billet-aluminum enclosure
