AEM

AEM 8 Channel K-Type Thermocouple EGT CAN Module

Sale
Seen it cheaper? Send us the link. If we can beat it, we will.
CODE: AEM30-2224
$584.95
$519.95 In Stock Sold out
Your vehicle

Select or change your vehicle here before checkout. You stay on this product while Hurrey’s keeps the fitment context.

View fitment table Call the shop Ask fitment

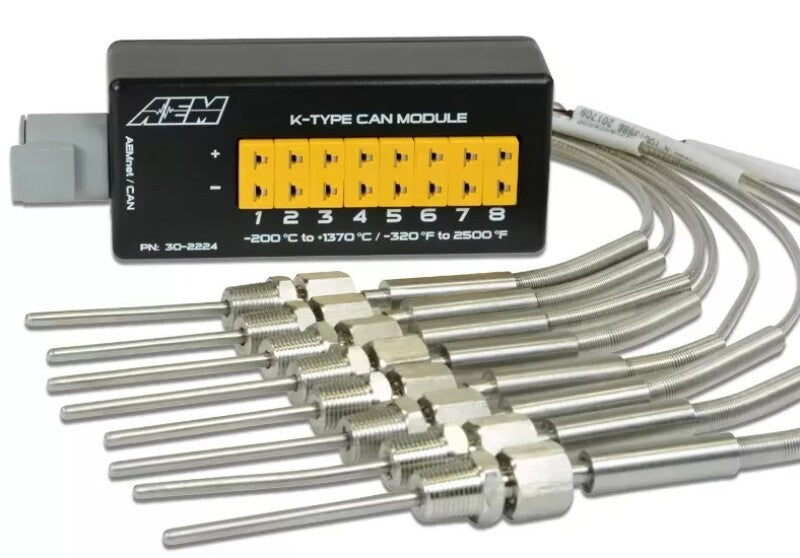

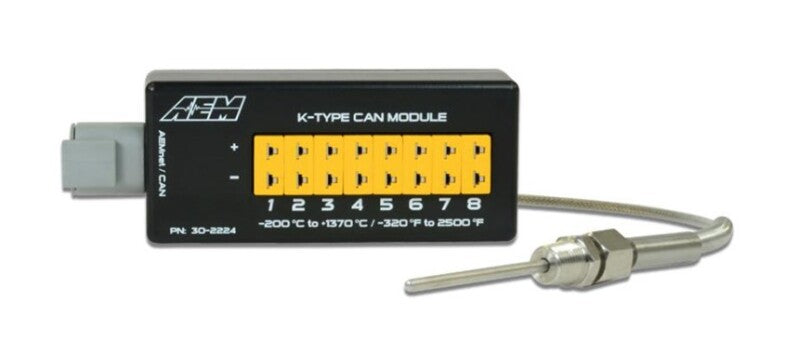

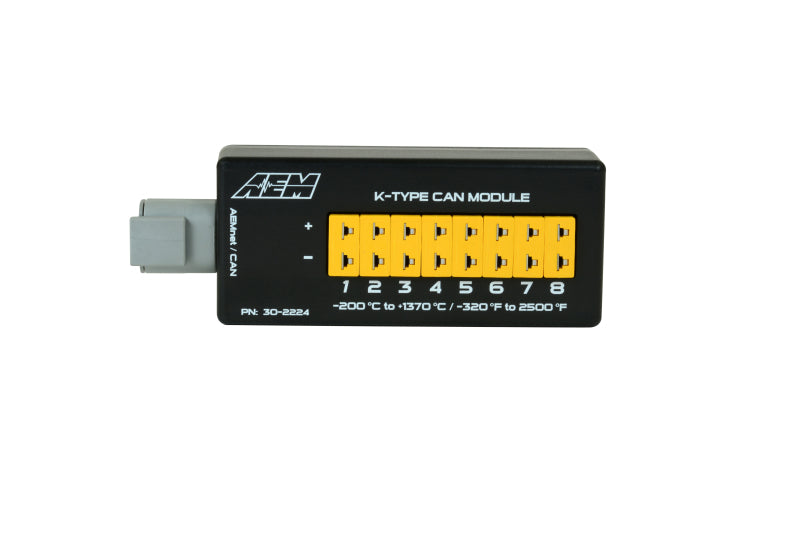

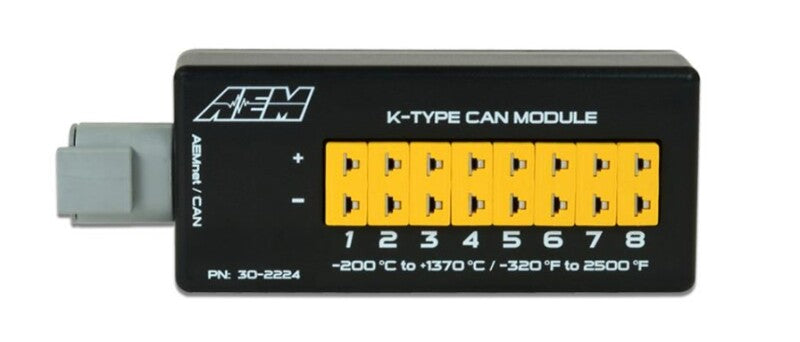

8-Channel K-Type Thermocouple EGT/Temperature Sensor Module with CANbusconnectivity, includes CAN Module, DTM connector plug, Velcro tab for mounting and instructions.

Warranty
Installation Instructions
  • Pre-configured AEMnet CAN bus for plug & play connection to CD Digital Dashes, Infinity ECUs, and AQ-1 (not compatible with Series 2 ECU at this time)

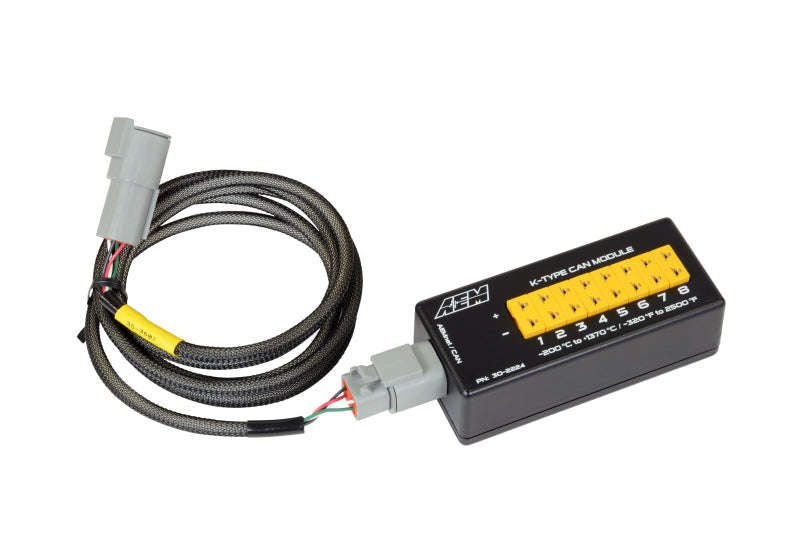

  • Outputs all channels via configurable CAN bus via one-plug connection (DTM-style Connection Cables sold separately in various lengths)

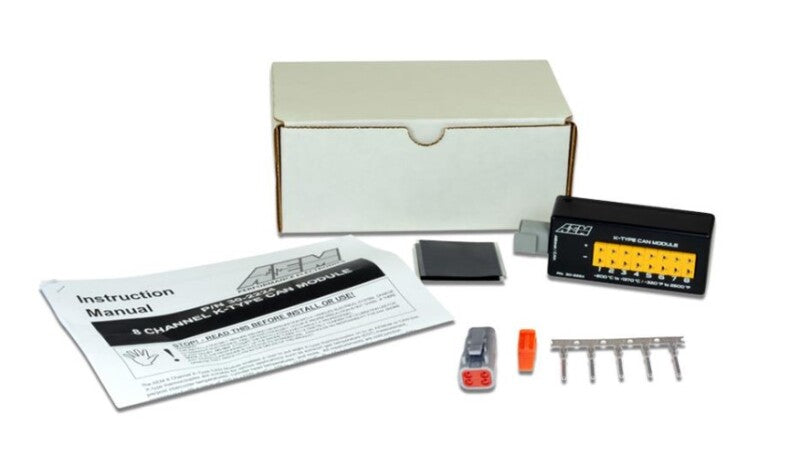

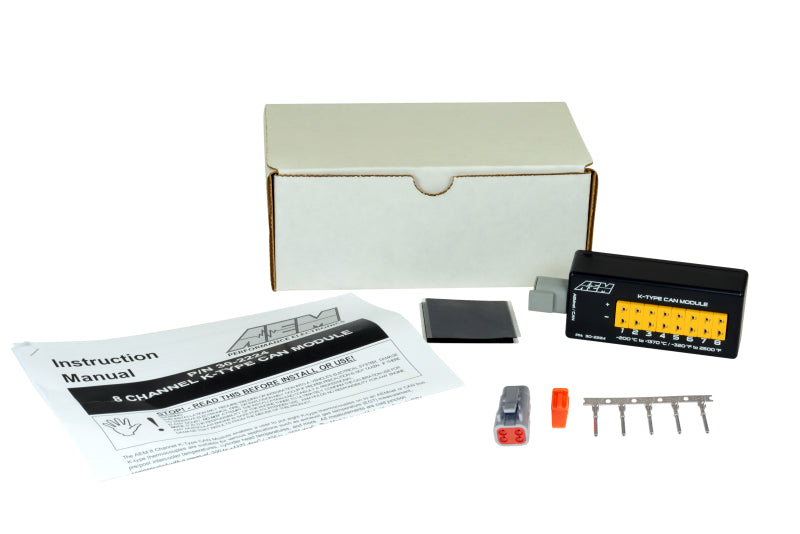

  • Includes 8-Channel K-Type EGT CAN Module, 4-Pin DTM-style Connector Plug, instructions and Velcro for in-vehicle mounting
  • Includes 8 K-type thermocouple inputs to accept common K-type thermocouple sensors (sensors sold separately)
  • Daisy-chain two modules together for up to 16 temp inputs through a single plug!
  • Cold junction compensated for lab-grade accuracy (+/- 0.15% full scale)
  • Measures temperatures from -200 to 1372 degC (-328 to 2501 degF)
  • Temperature resolution 0.1 degC (0.18 degF)
  • Uses common miniature thermocouple sockets
  • Integrated open circuit/fault detection
