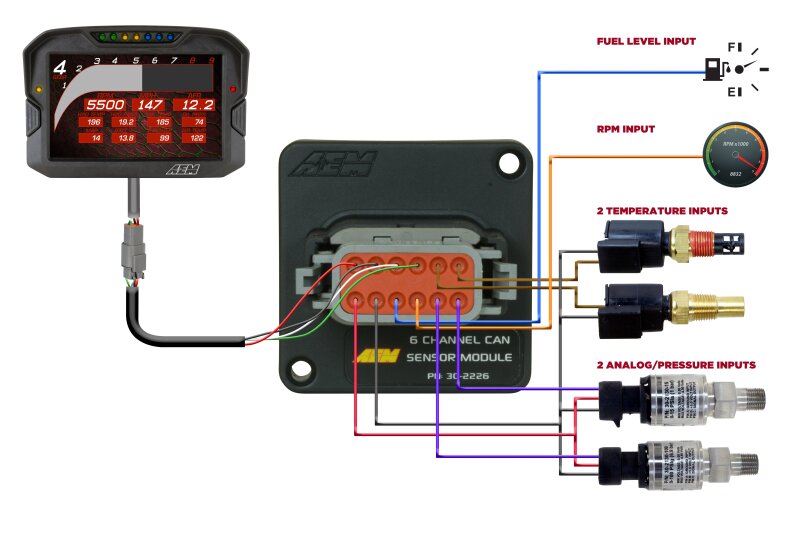

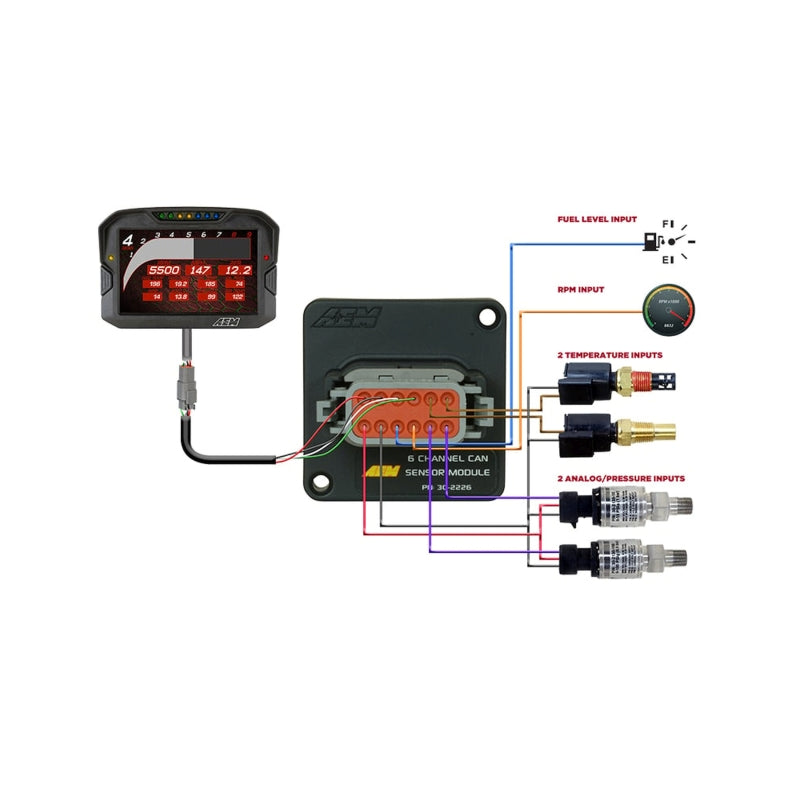

AEM's 6 Channel CAN Sensor Module (PN 30-2226) provides an affordable and easy way to add temperature, pressure, fuel level, and tachometer signals on to a CD Carbon Digital dash through AEMnet CAN bus! It supports the Bosch CAN 2.0b standard, making it compatible with many third-party devices that accept a programmable CAN bus input, which also allows you to add additional channels to a non-AEM ECU, dash or logger.

Installation Instructions

IP67 Potted Enclosure / Sealed Connector - "dust tight" and protected against water spray
One (1) dedicated fuel level input (0 to 250 Ohm range)
Fixed CAN bus speed, header length, and base address
Two (2) dedicated 0-5V analog inputs
One (1) tachometer/coil input
Protected inputs
