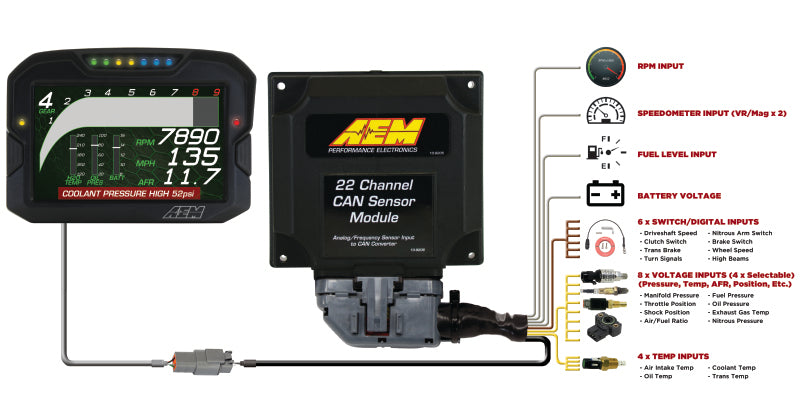

Illustration Guide
Photo - out of package
Photo - out of package
Photo - out of package
Photo - out of package
AEM

AEM 22 Channel CAN Expander Module

Manufacturer part number: 30-2212

Sale
Seen it cheaper? Send us the link. If we can beat it, we will.
CODE: AEM30-2212
$506.95
$404.96 Available to order Sold out
Buy now, pay later with Shop Pay.

Choose Shop Pay at checkout to see your available payment options.

Rates from 0-36% APR. Payment options through Shop Pay Installments are subject to an eligibility check and are provided by these lending partners: affirm.com/lenders. Options depend on your purchase amount, and a down payment may be required. State notices to consumers: affirm.com/licenses.

Buy nowCheckout this item

Share your vehicle details now, or choose to provide them later. For multiple items or installation, use Add to cart.

Shipping and applicable taxes are calculated at checkout.

Select a vehicle info status to continue.

Shipping and applicable taxes are calculated at checkout.

Need it by a certain date? Call 609-249-4921 before ordering. Online availability does not confirm stock at our Hamilton shop; please call ahead for pickup or installation.

Your vehicle

Select or change your vehicle here before checkout. You stay on this product while Hurrey’s keeps the fitment context.

View compatible vehicles Call the shop Ask fitment
View compatible vehicles

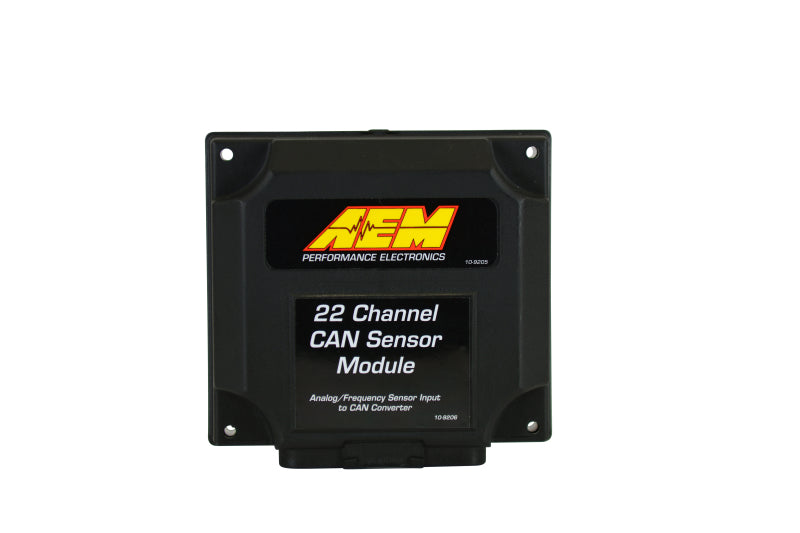

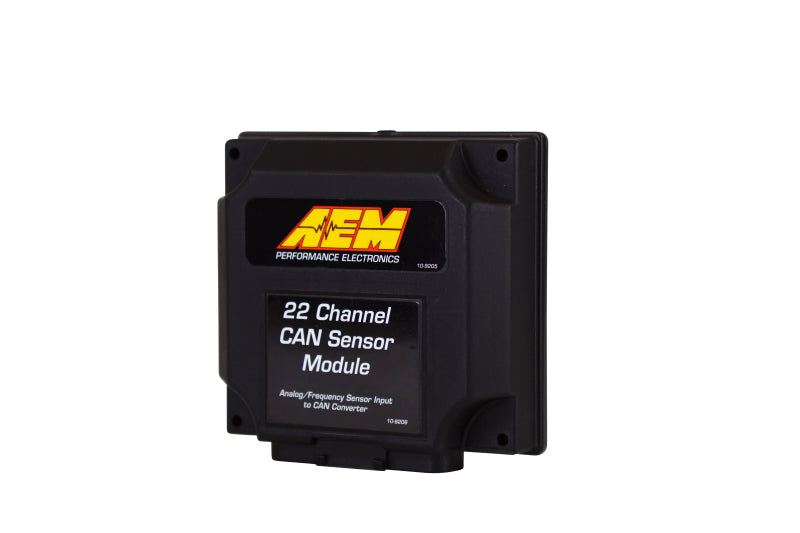

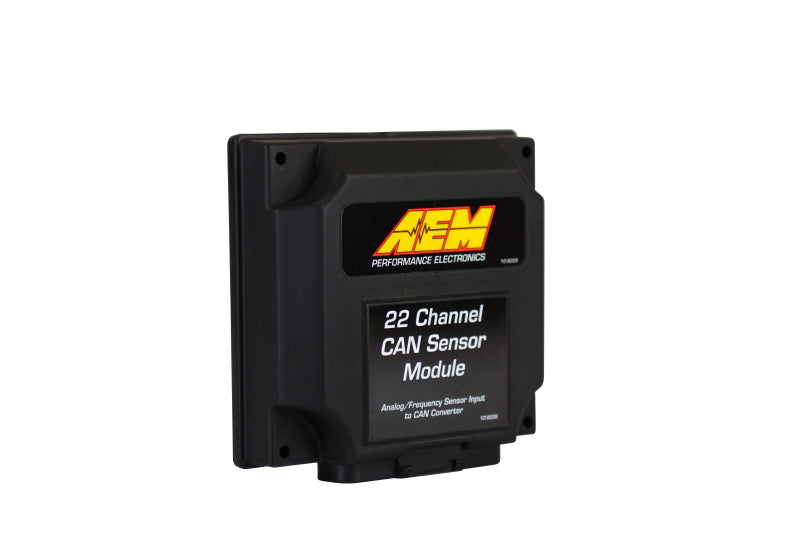

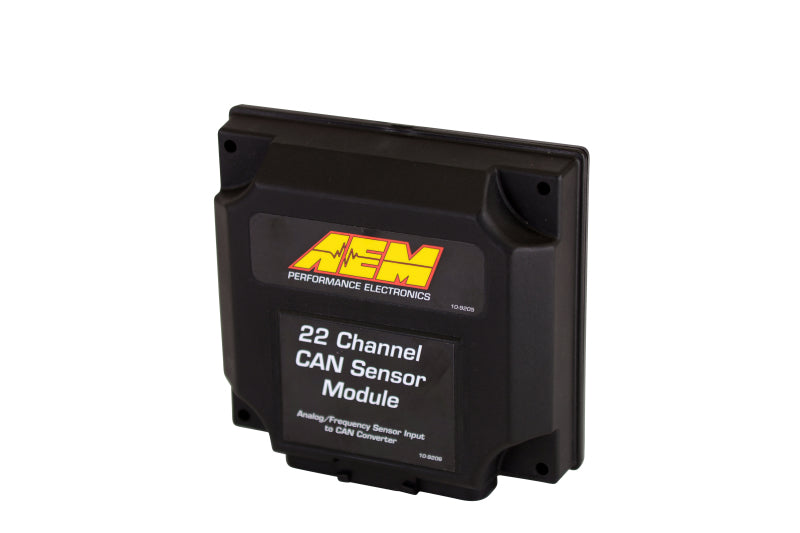

AEM's 22 Channel CAN Sensor Module (PN 30-2212) converts analog, digital and frequency inputs into an AEMnet CAN bus signal that can be transmitted to the CD-5 Carbon and CD-7 Digital Dashes. This expansion module provides a way for users with carbureted vehicles to add a CD Dash, and lets users with existing CAN-based devices add more channels to the display for viewing and/or data logging (data logging requires CD-5L Carbon or CD-7L logging Dashes). The 22-Channel CAN Sensor Module is compatible with the CD Dashes only; it will run in parallel with 3rd party CAN devices on the CD dashes but it is currently not compatible with AEM's AQ-1 Data Logger, Series 2 or Infinity ECUs, or 3rd party ECUs or loggers.

Warranty
Installation Instructions
  • Convert analog, digital and frequency-based inputs to AEMnet CAN bus for display on CD-5 Carbon and CD-7 Dashes!
  • Ideal for EFI users who want to add more channels to a CD Dash without purchasing multiple CAN-based devices
  • Six Digital Inputs, active low, protected to ~18v, frequency, duty cycle or simple switch
  • Four User configurable analog inputs, (jumper selectable; 0-5v, thermistor, or RTD)
  • Perfect for users with carbureted vehicles who want to add a CD Dash display

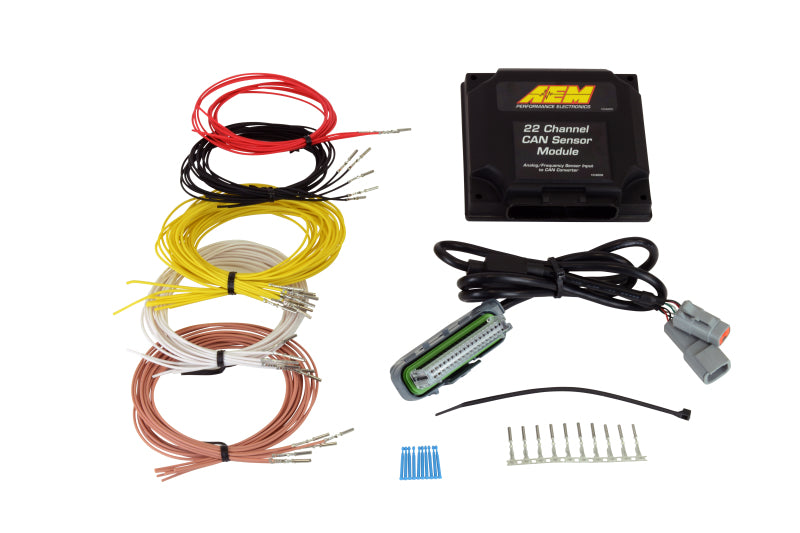

  • Wiring harness included with 36-inch flying leads and pre-wired CAN cable
  • Two VR pair frequency inputs (crank, wheel or drive shaft speeds)
  • Daisy chain two Modules together for additional channels
  • IP65-rated enclosure is 'dust tight' and water resistant
  • One dedicated fuel level input (0 to 250 ohm range)
  • Jumper selectable header length, 11bit or 29 bit
  • Jumper selectable CAN bus speeds, 250k,500k,1M
  • Jumper selectable terminating resistor
  • Four Temperature (thermistor) inputs
  • Four Dedicated 0-5V analog inputs
  • One Tach Input
