ACT 13-23 Subaru WRX Mod-Twin 225 HD Rigid Street Clutch Kit

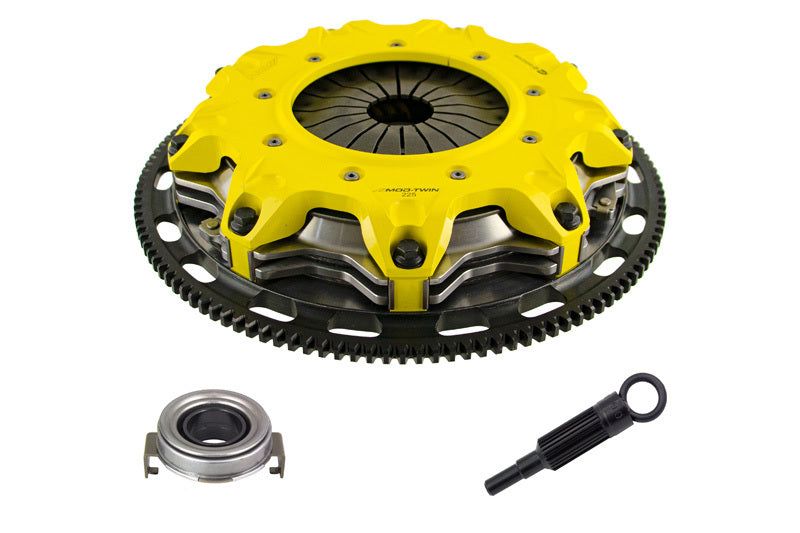

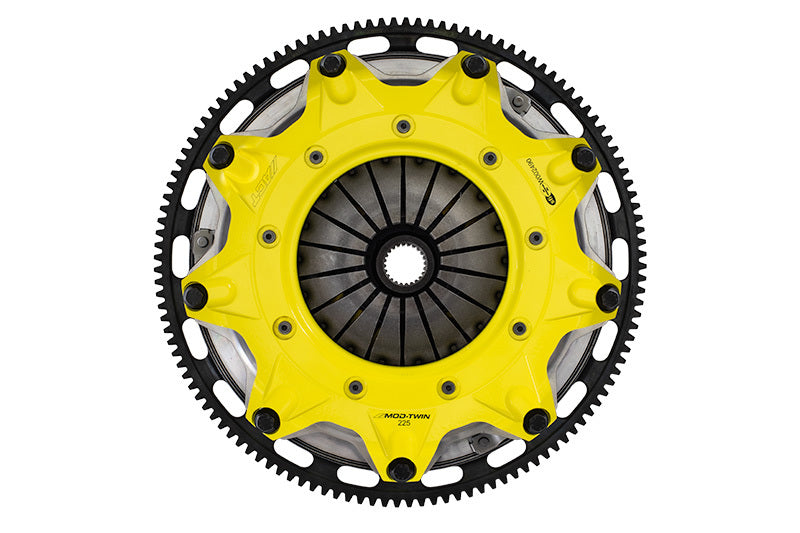

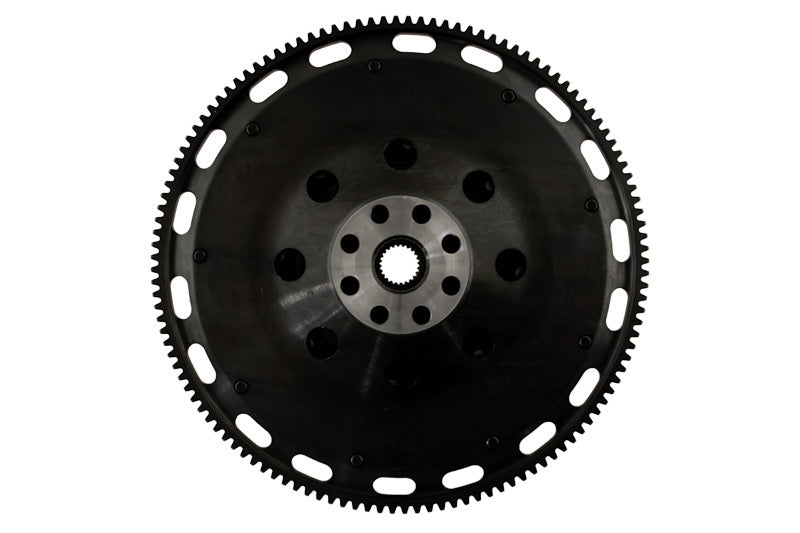

T1S-S01 Mod-Twin 225 HD Rigid Street Kit blends easy pedal feel, smooth but positive engagement with quick shifting for high powered AWD’s by combining twice the organic friction surfaces with a no-nonsense rigid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive chrome-moly hub which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
Installation Instructions
Warranty


This Part Fits:

Year	Make	Model	Submodel
2006	Subaru	Baja	Turbo
2008	Subaru	Forester	Sports 2.5 XT
2006-2008	Subaru	Forester	XT Limited
2006-2014	Subaru	Impreza	WRX
2006-2007,2010-2014	Subaru	Impreza	WRX Limited
2009-2014	Subaru	Impreza	WRX Premium
2006-2007	Subaru	Impreza	WRX TR
2010-2012	Subaru	Legacy	2.5GT
2005-2006	Subaru	Legacy	GT
2005,2007-2009	Subaru	Legacy	GT Limited
2006-2009	Subaru	Legacy	GT spec.B
2005-2006	Subaru	Outback	XT
2005-2009	Subaru	Outback	XT Limited
2015-2024	Subaru	WRX	Base
2015-2025	Subaru	WRX	Limited
2015-2025	Subaru	WRX	Premium
2025	Subaru	WRX	TS
